Articulating Barrier Gate
The BGF-5xx high-volume articulating barrier gate with a folding arm for low-clearance garages and underground structures. Direct drive motor, stainless steel housing, auto-reverse safety, and red/green illuminated panels — manufactured by Parking BOXX.
Folding arm. Maximum clearance. High-volume performance.

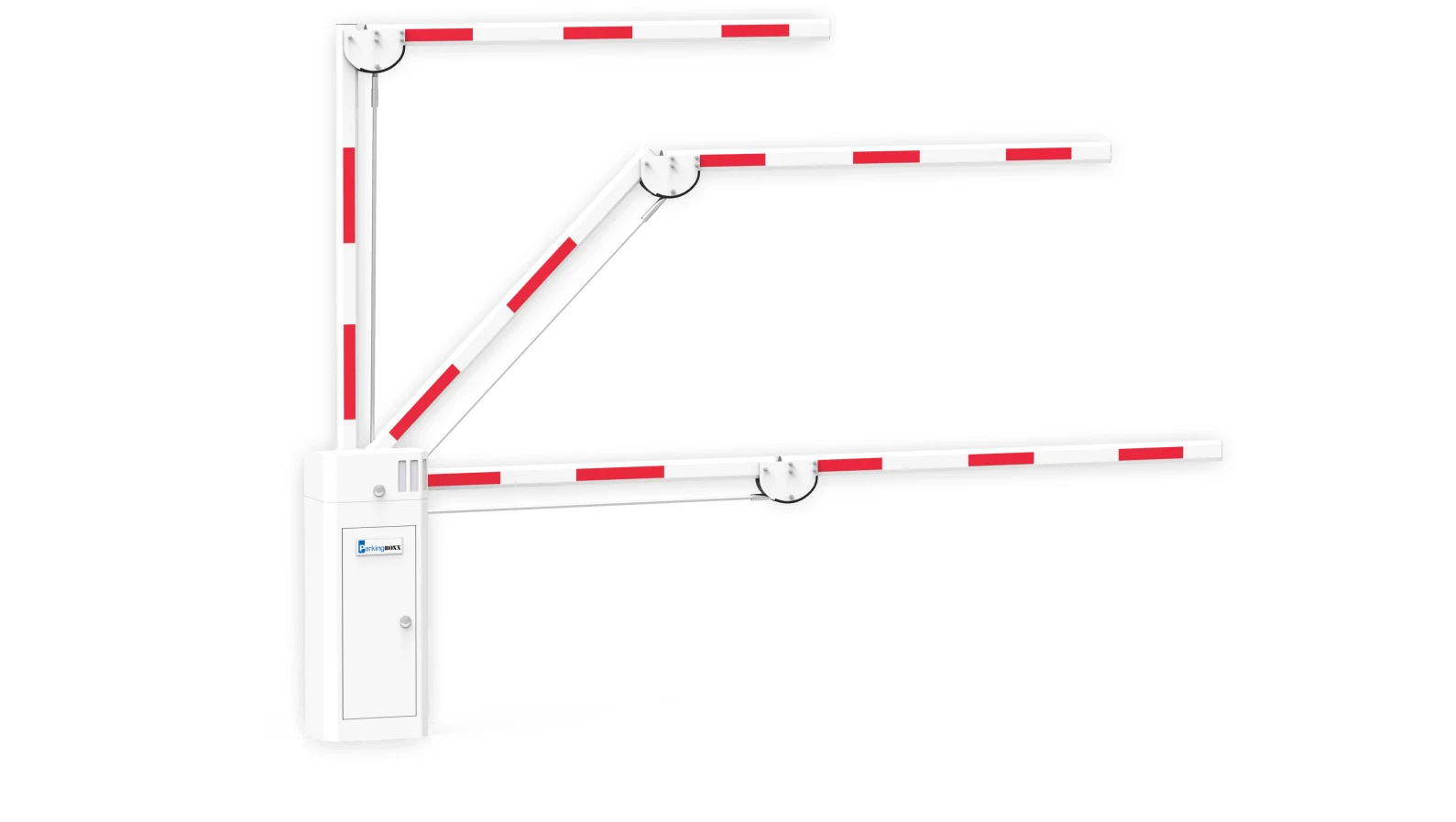

Designed specifically for parking facilities where overhead space is limited. The arm bends at a hinge point as it rises — enabling full lane coverage without requiring standard arm clearance height.
- ✓ Rust-resistant stainless steel housing
- ✓ Programmable open/close speeds
- ✓ Auto-reverse on obstruction
- ✓ Multiple I/O for system integration
- ✓ Red/green illuminated panels
- ✓ Suitable for northern climates and salt-water environments
A barrier gate engineered for low-clearance environments.
An articulating barrier gate is a type of automated barrier gate system designed for locations where overhead space is limited. Unlike a standard straight barrier arm that lifts upward in one solid piece, an articulating gate arm bends at a hinge point as it rises. This folding motion allows the arm to operate safely in parking garages, underground structures, and areas with low ceilings.
Full vertical rise required
- Arm lifts in a single rigid piece
- Requires full arm-length of overhead clearance
- Ideal for surface lots and open-air lanes
- Available in straight arm lengths 8–18 ft
- Lower mechanical complexity
Folds at the hinge — maximum ceiling clearance
- Arm bends at hinge point as it rises
- Operates in significantly lower ceiling clearance
- Ideal for garages, underground structures, covered lanes
- Full lane coverage when closed — same security as straight arm
- Same auto-reverse safety, illuminated panels, and I/O as standard BGS-6xx
Ideal when a straight arm simply won't fit.
An articulating arm is the correct choice when ceiling height restrictions make a traditional straight arm impractical. By bending as it lifts, the arm requires significantly less overhead space while still maintaining full lane coverage when closed. These facilities benefit most from articulating gates.
Low-Clearance Parking Garages
Multi-level parking garages with ceiling heights that prevent a straight arm from fully raising. The folding arm operates within the available vertical space without compromising lane control.
Underground Parking Structures
Below-grade parking in residential and commercial buildings where entry ramps and ceiling heights restrict gate arm travel. The articulating arm maximizes clearance at the ceiling while still spanning the full lane width.
Covered Loading Areas
Covered entry points at mixed-use buildings and commercial properties with architectural overhangs or canopies that limit vertical clearance at the entry lane.
High-Traffic Automated Facilities
Facilities requiring high cycle rates without compromising safety or durability. The BGF-5xx is rated for high-volume operation with the same reliability standards as the standard BGS-6xx barrier gate.
Mixed-Use Buildings
Urban mixed-use developments with limited vertical space at the parking entry point. Residential towers and office buildings often have structural constraints that require a folding arm solution at the ground-level entry lane.
Where Maximum Clearance Is Essential
Any location where vehicles — including taller SUVs, vans, and light trucks — require the highest possible vertical clearance both when the gate is open and when it is closed in the lane.
Engineered for harsh environments and heavy use.
The BGF-5xx high-volume articulating barrier gate combines durable construction with advanced motor technology and built-in safety features. Every unit is designed for long-term, unattended operation.
Stainless Steel Housing
Rust-resistant stainless steel enclosure protects the motor and controls in northern climates, coastal installations, and equatorial salt-water environments where standard steel would corrode.
Direct Drive Motor
Direct drive motor eliminates belt and chain wear points. Fewer moving parts means lower maintenance requirements and consistent performance over millions of cycles in high-volume facilities.
Auto-Reverse on Obstruction
The arm reverses immediately when it contacts a solid object during closing. A required safety feature on every Parking BOXX barrier gate — protects vehicles, pedestrians, and the gate mechanism itself.
Red/Green Illuminated Panels
Top-mounted illuminated guidance panels stay red when the arm is down. The panel switches to green when the arm is fully open and the lane is clear. Provides clear stop/go guidance for drivers in all lighting conditions.
Programmable Speed Selection
Open and close speeds are configurable to match the traffic volume and safety requirements of the facility. Faster speeds support high-cycle applications; slower speeds are appropriate for facilities with frequent pedestrian activity near the gate lane.
Multiple I/O Connections
Multiple input/output connections for integration with ticket machines, access control readers, LPR cameras, pay stations, loop detectors, and CloudEASE parking management software. Compatible with the full Parking BOXX system and third-party equipment.
Works with the full Parking BOXX system.
The BGF-5xx articulating barrier gate integrates with every component of the Parking BOXX automated parking system. The articulating arm is one configuration in the full range of parking barrier gate systems — same I/O connections, same CloudEASE integration, same installation process.
Integrates with ticket dispensers and LPR camera systems at entry lanes. Gate stays down until driver takes a ticket or plate is verified.
Works with pay stations and exit verifiers. Gate opens after payment is confirmed or credential is validated. Emergency intercom can be wired in parallel.
Compatible with card readers, proximity fobs, PIN pads, and mobile credential systems for employee and tenant parking without requiring ticket or payment.
Gate status, cycle counts, and fault alerts reported through CloudEASE. Remote open/close from any device. Integrated with revenue reporting and transaction logs.
In addition to solving space constraints, articulating arms maintain the same safety, durability, and access control capabilities as standard barrier gates. View the full range of Parking BOXX barrier gate systems to compare straight arm and articulating configurations.
Frequently Asked Questions
Common questions about the BGF-5xx articulating barrier gate — when to use it, durability, safety features, and system integration.
Request a QuoteWhat is an articulating barrier gate?
Why would I need a folding gate arm instead of a straight arm?
Are articulating barrier gates durable?
Does a folding barrier gate work with entry and exit systems?
What safety features are included with the articulating barrier gate?
Need an articulating gate for your facility?
Parking BOXX manufactures barrier gates for every application — surface lots, covered garages, and underground structures. If ceiling height is a constraint, the BGF-5xx articulating gate is the solution. Contact us to discuss your facility's specific clearance requirements.
- ✓ Model: BGF-5xx high-volume articulating gate
- ✓ Motor: Direct drive
- ✓ Housing: Stainless steel — rust-resistant
- ✓ Safety: Auto-reverse on obstruction
- ✓ Visual: Red/green illuminated panels
- ✓ I/O: Multiple inputs/outputs for full integration
