Parking Ticket Machine System — Entry Lane
A parking ticket machine system is the complete entry lane solution for a gated parking facility — the ticket machine, barrier gate, LPR camera, access control pedestal, intercom, and lot full signage all working together, connected to CloudEASE parking management software.
Every component in the entry lane.
Parking BOXX configures the parking ticket system to match your facility — a small surface lot might need just a ticket machine and barrier gate, while a multi-level hospital garage might use all components across multiple entry lanes. Not every lane needs every component.
The parking ticket system manages three types of entry events through one lane.
Parking BOXX designs entry lane parking ticket systems that handle monthly credential access, transient barcode ticketing, flat-rate entry payment, and LPR-based layered entry from a single integrated lane. Every component communicates in real time through CloudEASE.
Monthly and Credential-Based Entry
Monthly parkers, employees, residents, and hotel guests with registered credentials approach the entry lane and present their access credential — an RFID proximity card, HID Mobile Access on their smartphone, or a long-range vehicle tag.
The parking ticket system validates the credential in CloudEASE for the correct date, time, and facility, records the entry event, and opens the barrier gate. No ticket is issued. The entire process takes seconds.
Transient Barcode Ticket Entry
Visitors and hourly parkers press a button at the Entry BOXX ticket machine to receive a barcode ticket. The ticket encodes an encrypted timestamp with the entry date, time, and lane number. Once the driver takes the ticket, the barrier gate opens and the entry is recorded in CloudEASE.
When the driver is ready to leave, they present the ticket at a parking pay station where the barcode is scanned to calculate and collect the duration-based fee.
LPR Layered Entry
When an LPR camera is installed at the entry lane, LPR serves as the primary entry layer — the system captures the vehicle's license plate as it approaches. CloudEASE checks the plate against its database of registered monthly parkers, pre-registered visitors, and hotel guests.
If the plate is recognized, the barrier gate opens automatically — no ticket, no credential, no stop. If the plate is not recognized, the system falls back to standard ticket dispensing so the driver still gets tracked. Every vehicle gets a path forward — no dead ends.
Flat-Rate and Event Entry Payment
For event parking or facilities that charge a flat rate regardless of duration, the Entry BOXX can be configured to accept payment at the entry lane. The machine displays the rate, the driver pays by credit card or contactless tap, a receipt ticket is printed, and the barrier gate opens.
CloudEASE allows operators to schedule flat-rate periods in advance — the system switches modes automatically without manual intervention.
A complete parking ticket machine system from Parking BOXX includes:

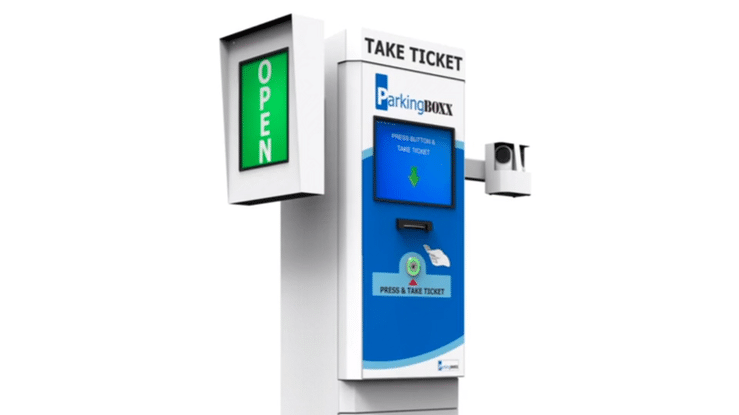

High-speed barcode ticket printing, optional credit card entry payment, custom branding with your logo and colors, lot full display, and a user-friendly interface that works for first-time visitors. 12" LCD with programmable storyboards and multiple languages.
Standard, articulating, and high-speed arms available. Vehicle detection loops prevent the gate from closing on vehicles in the lane. Fast-cycle operators open and close in under two seconds for high-volume facilities.
License plate recognition camera serves as the primary entry layer — captures plates at entry, opens the gate for registered vehicles, falls back to ticket dispensing for unregistered ones. Transaction linking and security tracking. Integrates directly with CloudEASE for real-time plate lookup. Also available: security cameras and NVR.
RFID card reader, HID Mobile Access, and long-range credential support for monthly parkers, employees, and residents. Credentials are managed in CloudEASE with date, time, and facility restrictions. Standard on Access Control systems; optional add-on for entry lane systems.

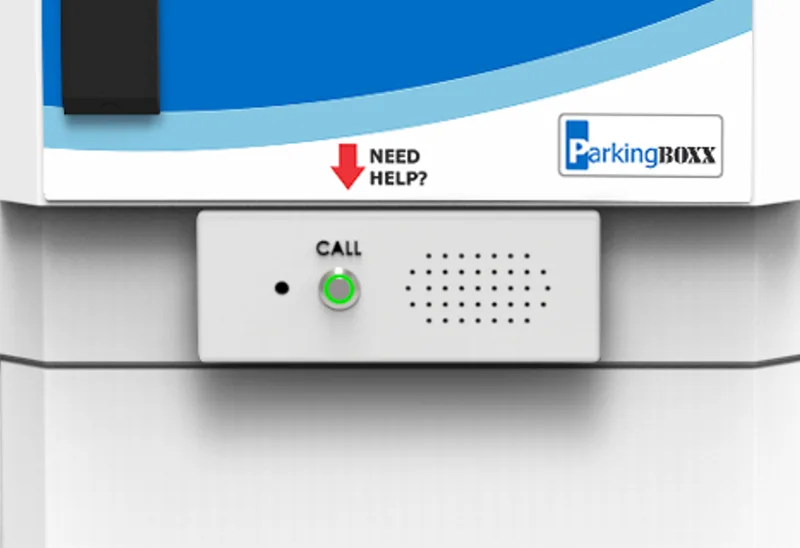

Built into the Entry BOXX or mounted as a standalone unit. Connects drivers to remote support staff for real-time assistance without requiring on-site personnel.
Display available space counts to incoming drivers. When the facility reaches capacity, the parking ticket system can stop issuing tickets and hold the barrier gate closed until spaces free up.

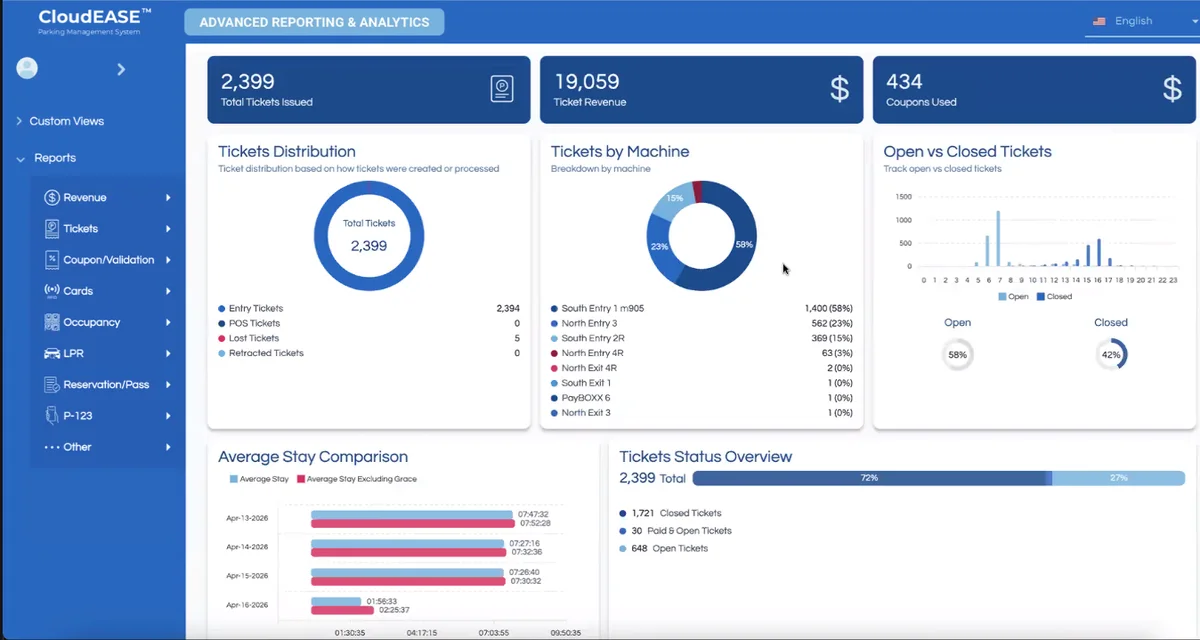

Every entry event is recorded in real time. Operators manage credentials, monitor lane status, run occupancy reports, and configure entry modes from any web browser — no server required.
Parking ticket systems are configured differently depending on the facility type and parker mix.
Transient-Heavy Facilities
Public garages, event venues, retail parking. Emphasize fast ticket dispensing, lot full indicators, and multiple payment options at exit. LPR adds convenience but ticket-based entry is the primary mode.
- Entry BOXX + barrier gate
- Lot full counter at lane head
- LPR optional for lost-ticket fallback
Monthly-Heavy Facilities
Office buildings, residential, employee lots. Emphasize credential-based access with RFID or HID Mobile. Transient ticketing is available for visitors and service vehicles. LPR can replace physical credentials for registered plates.
- Access control pedestal primary
- Entry BOXX for visitor lanes
- LPR for registered plate bypass
Mixed-Use Facilities
Hospitals, hotels, universities. Require all entry types in a single lane. Monthly staff enter by credential, transient visitors take tickets, hotel guests enter by LPR plate recognition or room key, and event parking uses flat-rate entry payment. CloudEASE manages the logic for which entry mode applies to each vehicle.
- Full kit: ticket + credential + LPR
- Flat-rate scheduled via CloudEASE
- All modes on same lane
Multi-Lane Facilities
Large garages may have dedicated lanes for monthly access (credential-only, no ticket machine) alongside transient lanes with full ticketing capability. CloudEASE provides lane-by-lane monitoring and can redirect traffic if a lane goes offline.
- Dedicated monthly-only lanes
- Dedicated transient lanes
- Centralized CloudEASE dashboard
Every entry event. Every lane. One dashboard.
Every component communicates in real time through CloudEASE. Operators manage credentials, monitor lane status, run occupancy reports, and configure entry modes from any web browser — no server required, no on-site staff needed at many customer sites.
The entry lane is the start. Here's the rest of the system.
Exit Lane System
Exit BOXX pedestal + barrier gate. Scans the ticket barcode, calculates the fee, confirms payment, and releases the gate.
Mini Pay BOXX & Big Pay BOXX
Walk-up pay stations for pay-on-foot facilities. Driver pays before returning to their vehicle; exit is fast with a paid ticket or LPR confirmation.
Access Control BOXX
Gated access for employees, tenants, and staff — no payment. RFID, AVI, and dual-height readers for mixed-height facilities.
Parking ticket systems, asked & answered.
Still have a question? One 15-minute call covers sizing, components, LPR options, integration, and pricing.
Ask yours1. What Is a Parking Ticket Machine System?
2. What Components Are in an Entry Lane Parking Ticket System?
3. How Does the System Handle Monthly and Transient Parkers?
4. Can the System Support LPR Layered Entry?
5. Are Entry Tickets Encrypted and Secure?
6. Can the System Be Set Up for Event or Flat-Rate Parking?
7. What Is the Difference Between a Parking Ticket Machine and a Parking Ticket System?
8. How Much Does a Parking Ticket Machine System Cost?
Scope your entry lane system.
Tell us about your site — facility type, lane count, and parker mix. We'll size the right system and send a proposal, usually within one business day. No pitch, no pressure.
