Campground and RV Park Parking Systems
Campgrounds and RV parks face an access control challenge that most urban parking facilities never encounter. Guests arrive at all hours — often after dark, often towing large vehicles — and the property perimeter needs to be secured while remaining welcoming. Unlike a downtown parking garage, campground access is about controlling who enters the property, not managing payment for individual spaces. The gate is the first and last point of contact between the property and every guest.
Parking BOXX manufactures gate systems, intercoms, and campground access control hardware designed for outdoor, rural environments. Every component is built in-house and installed by Parking BOXX technicians throughout North America. Campground operators work directly with the manufacturer — no reseller markups, no middlemen, and custom configurations available for properties with unique entry layouts. As part of a complete parking control systems platform, these solutions bring the same reliability used in commercial parking facilities to the campground and RV park market.
Campground Access Control Challenges
Running a campground without automated gate access means relying on staff to manage every vehicle that enters or leaves the property. That works during office hours on a summer weekday. It breaks down everywhere else.
The most common problems campground operators describe fall into a few categories. Unauthorized vehicles enter after hours when no staff member is present to check reservations. Late-arriving guests with valid reservations find a locked gate and no way to reach anyone. Seasonal staffing gaps leave the entrance unattended during shoulder season, when the property is open but fully staffing the front desk is not cost-effective. Remote locations compound every one of these issues because there is no nearby security service to call.
Campground security also extends beyond the gate. Operators need a record of who entered and when, the ability to revoke access for guests who check out early or violate policies, and a way to grant temporary access to delivery vehicles, maintenance crews, and emergency services without handing out a master key.
Manual gate management is a staffing problem disguised as a security problem. The solution is not more staff — it is a system that handles access automatically and only involves a human when something unusual happens.

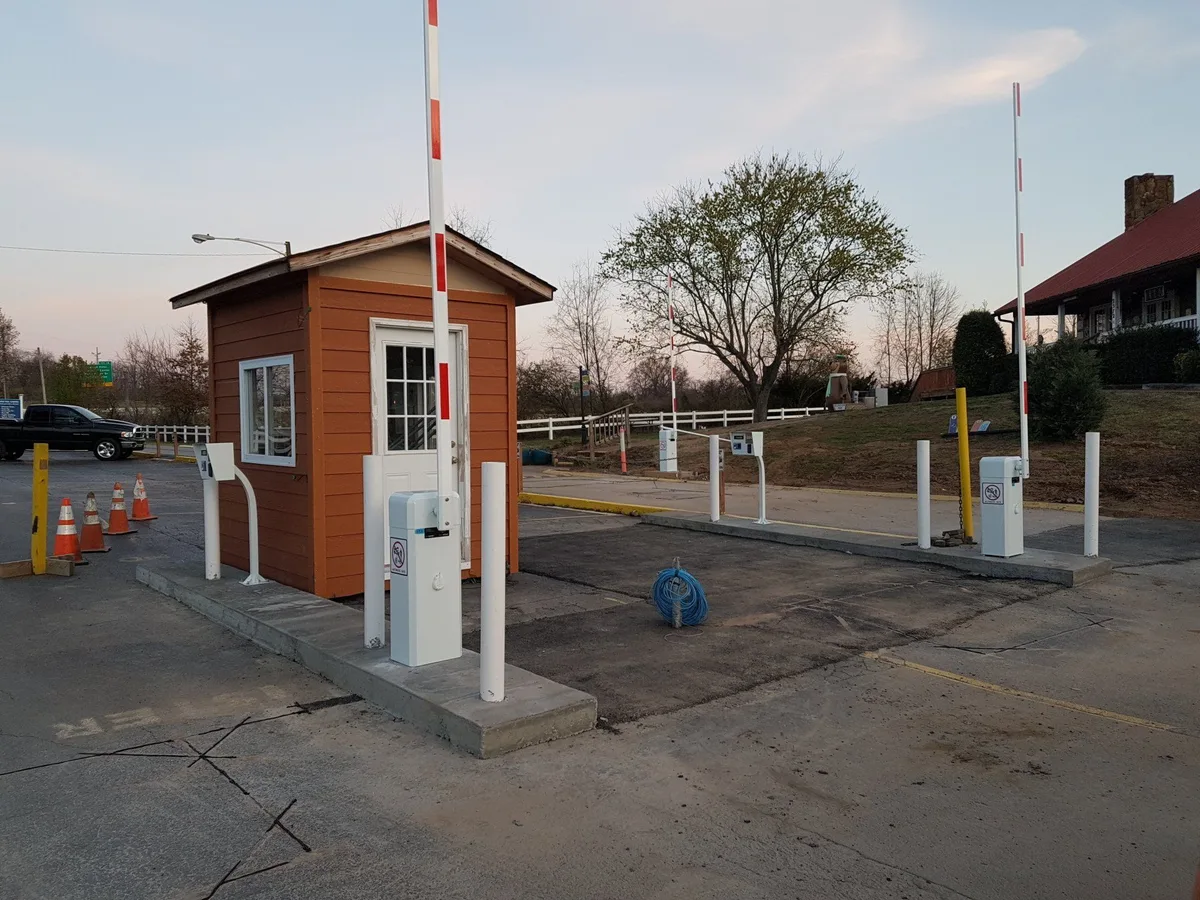

Automated Gate Access for Campgrounds

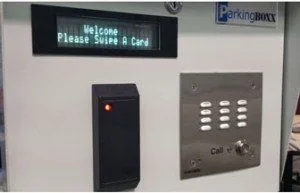

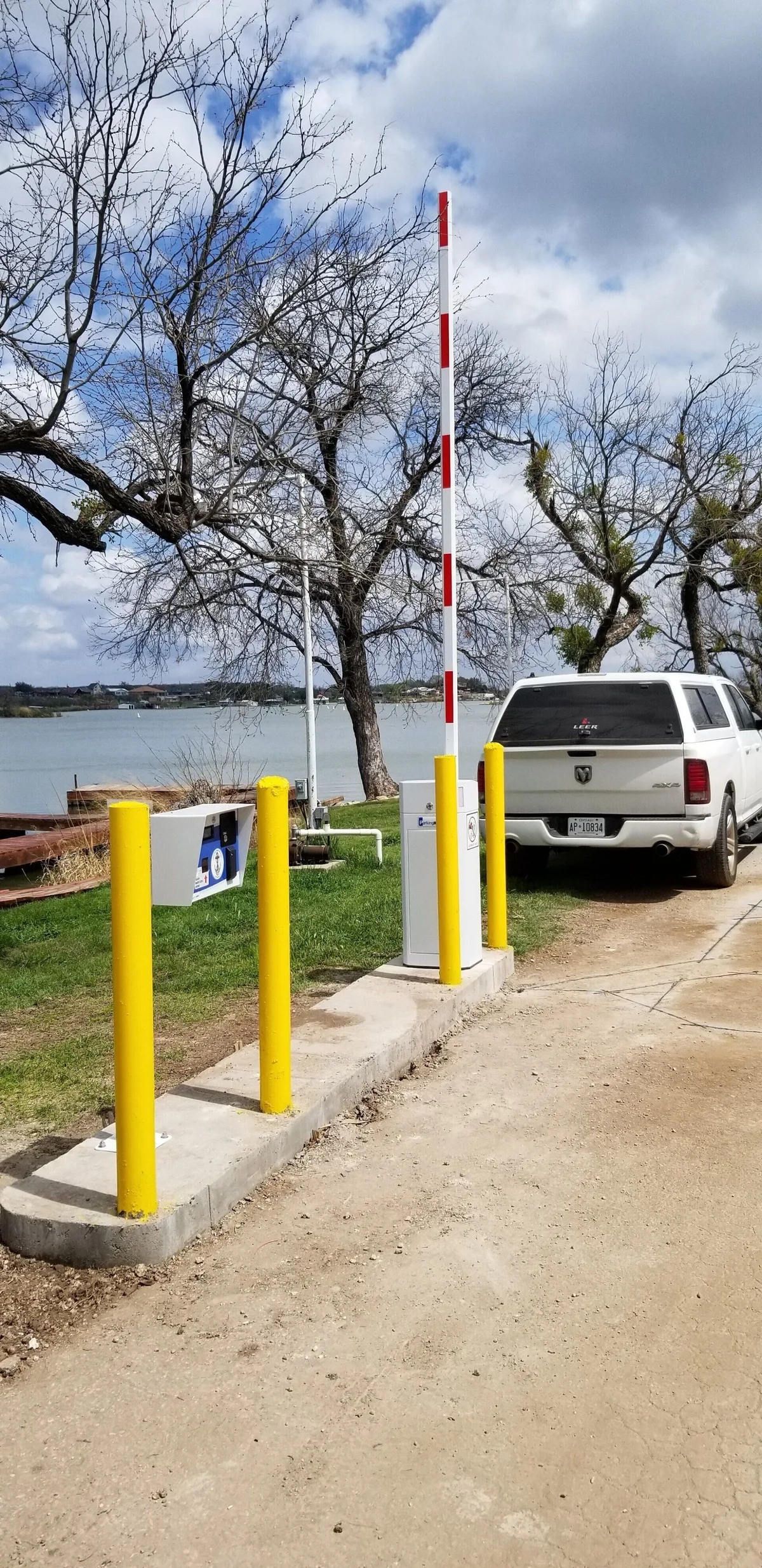

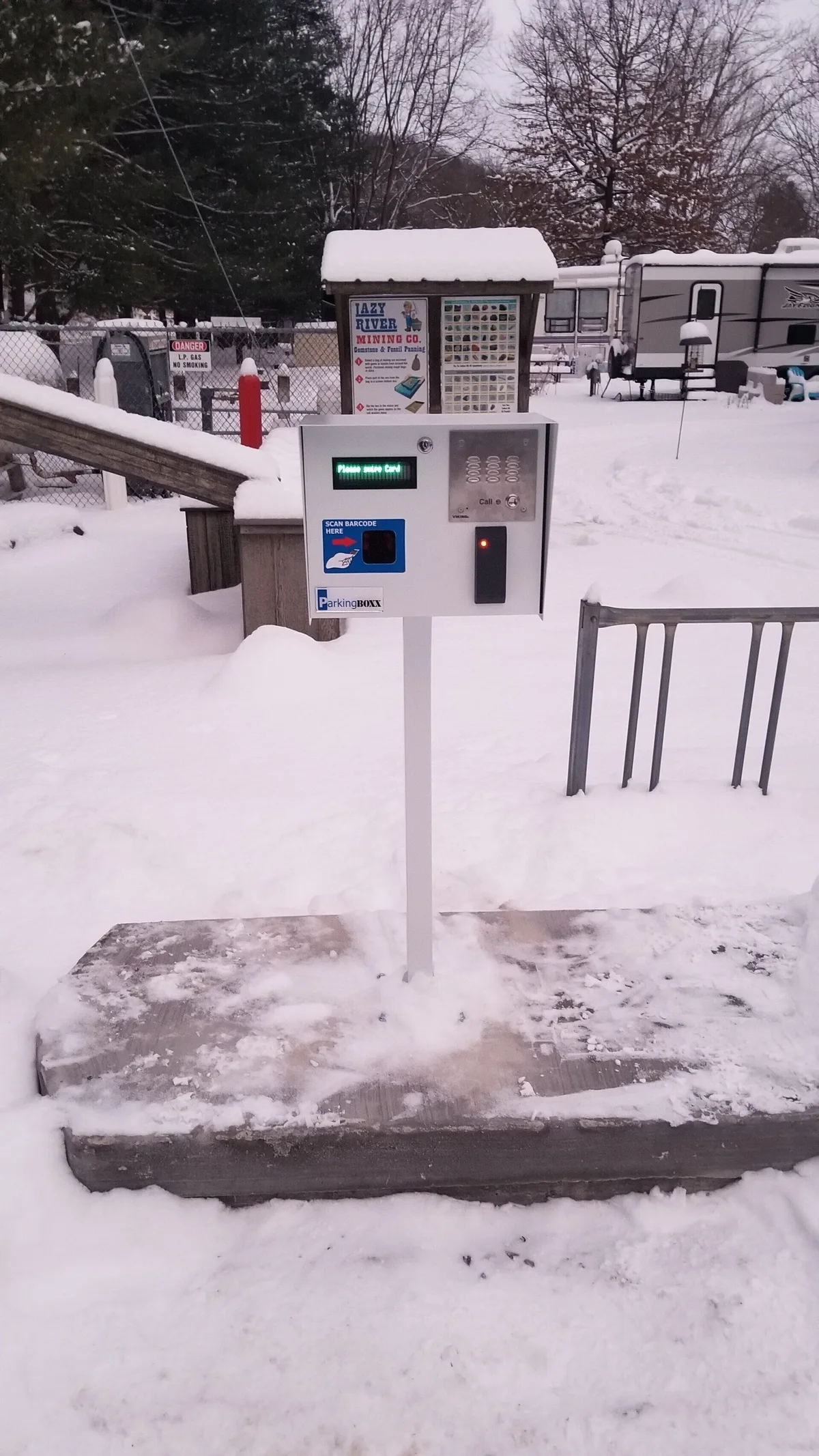

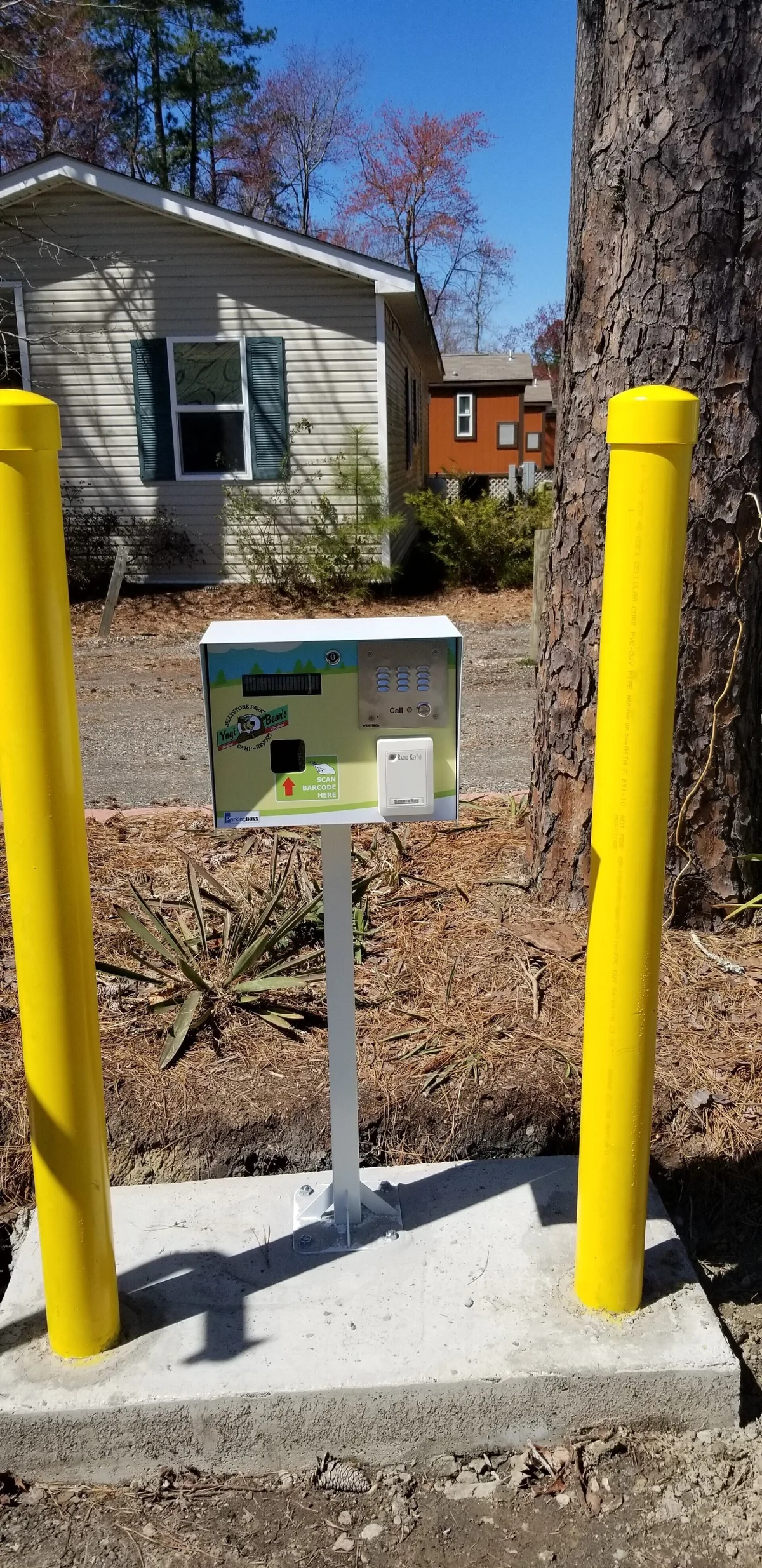

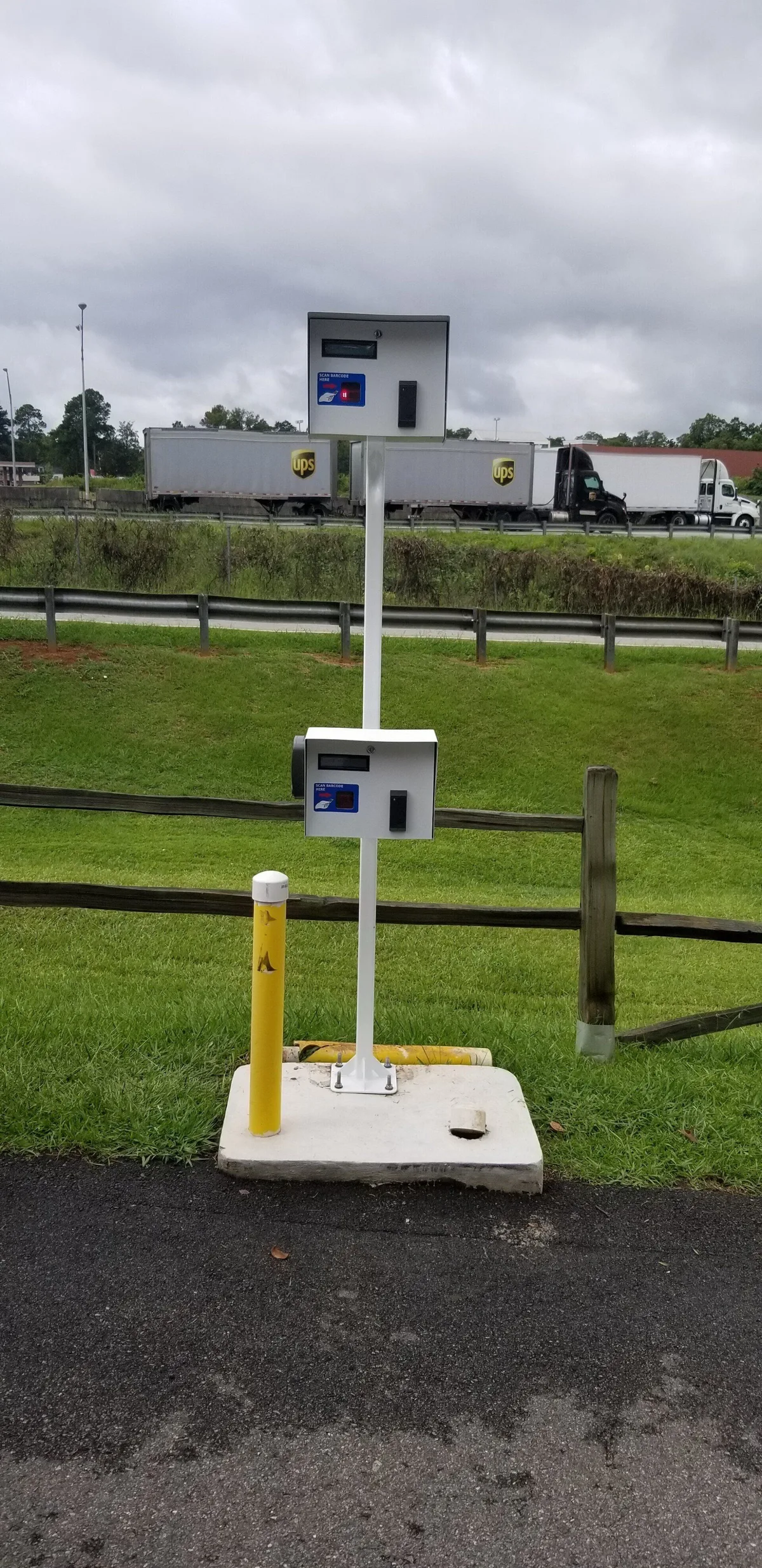

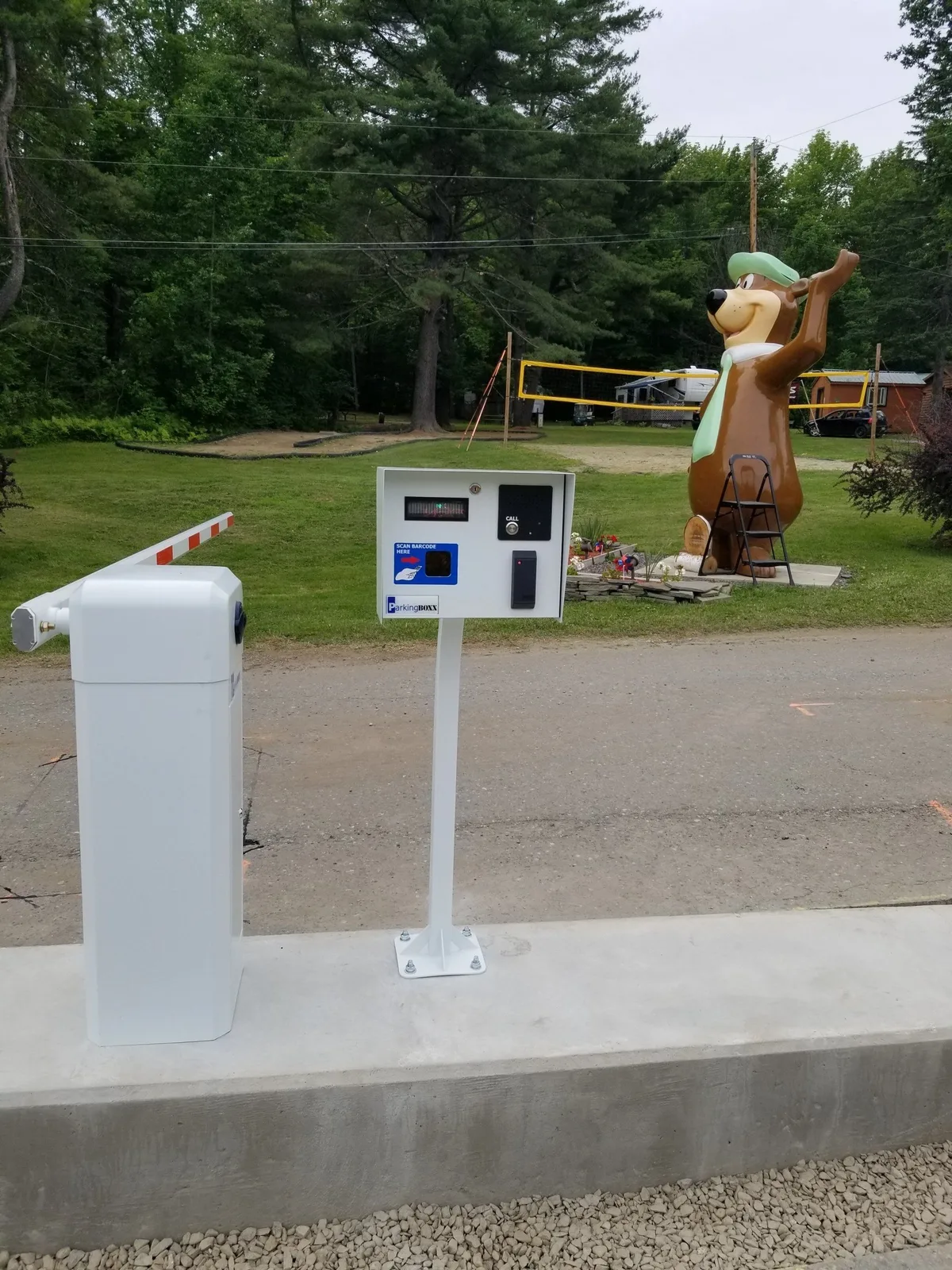

The core of any campground access control system is a barrier gate at the property entrance connected to a credential reader. When a guest approaches the gate, they present their credential — a PIN code entered on a keypad, a keycard or fob tapped on a reader, a QR code scanned by a camera, or a license plate recognized by an LPR (License Plate Recognition) camera. If the credential is valid, the gate opens. If not, the guest uses the intercom to contact the office.
Parking BOXX barrier gates are engineered for outdoor environments. The housings are weather-sealed, the arms are rated for wind loads, and the electronics operate reliably across the temperature range that campgrounds in North America experience — from sub-zero Canadian winters to Arizona summers. Gate arm lengths are adjustable to match lane widths, and cycle times are configured for the traffic pace of a campground entrance rather than a busy urban garage.
Each reservation gets a unique access credential that activates at check-in time and deactivates at checkout. There is no master code to share on social media, no universal keycard to duplicate, and no way for a former guest to re-enter after their stay ends. If a guest extends their stay, the credential updates automatically. If they leave early, access is revoked immediately.
This automated approach means the camping gate operates around the clock with zero attendant labor. The only human involvement is the initial setup of the reservation credentials, which integrates with the property's booking workflow.
Live carousel of Parking BOXX campground and RV park installations · loads from locations.parkingboxx.com

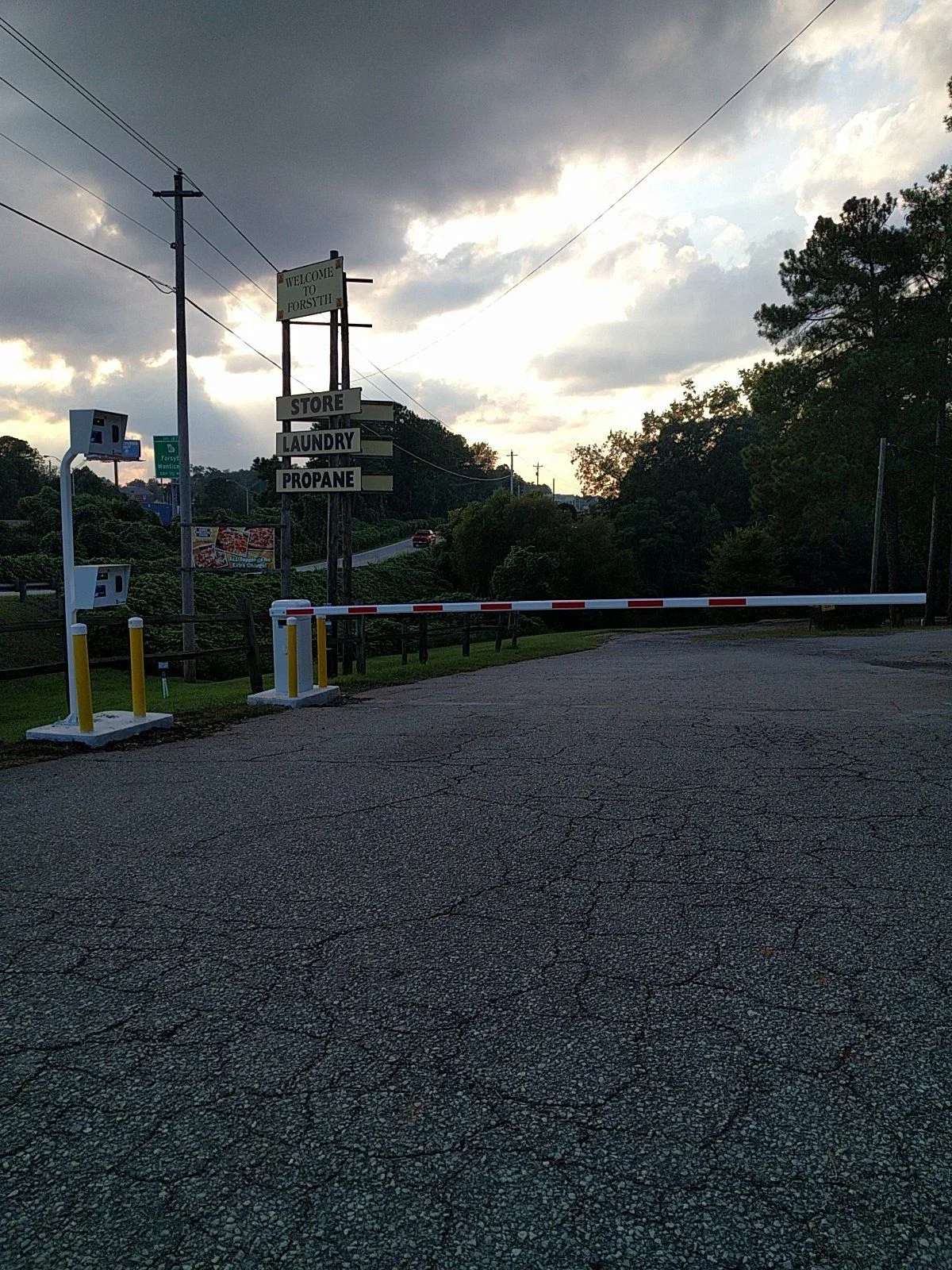

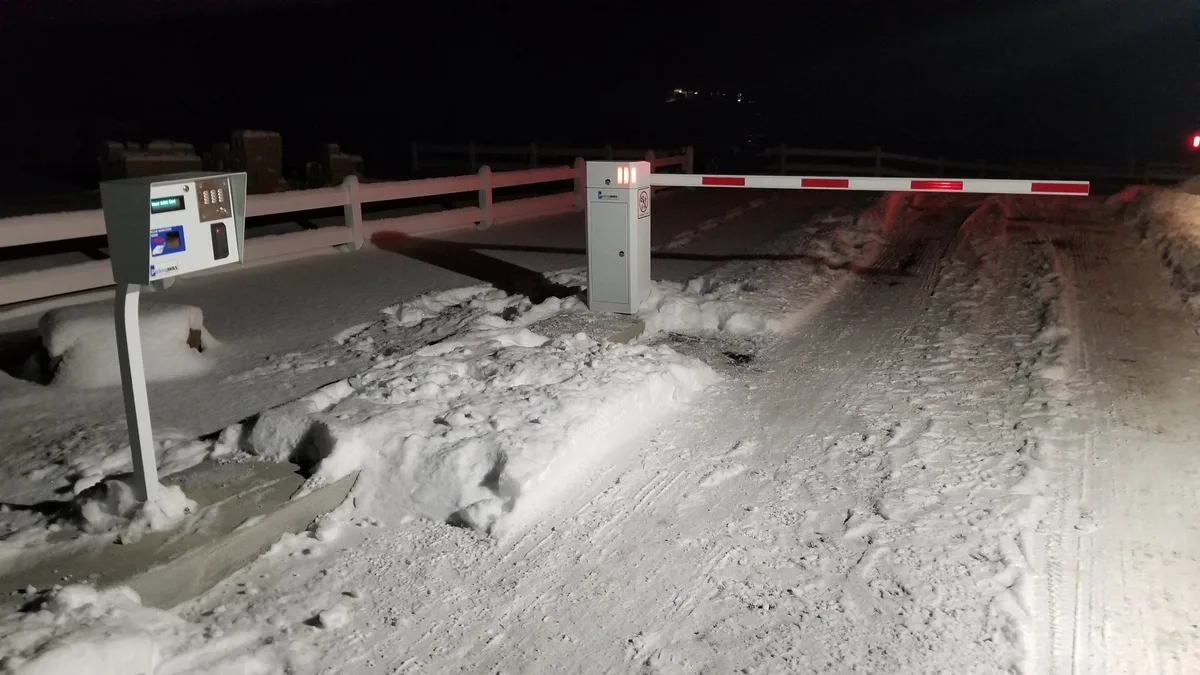

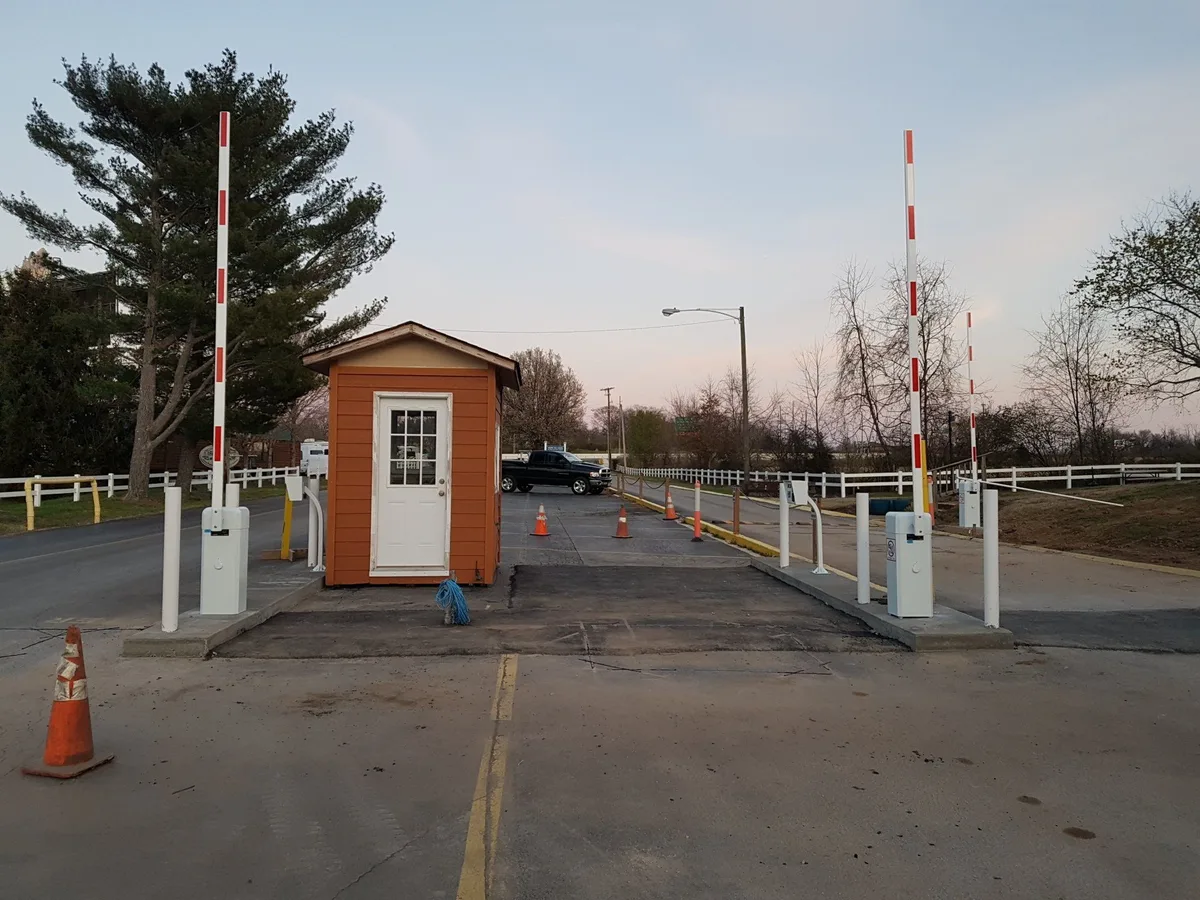

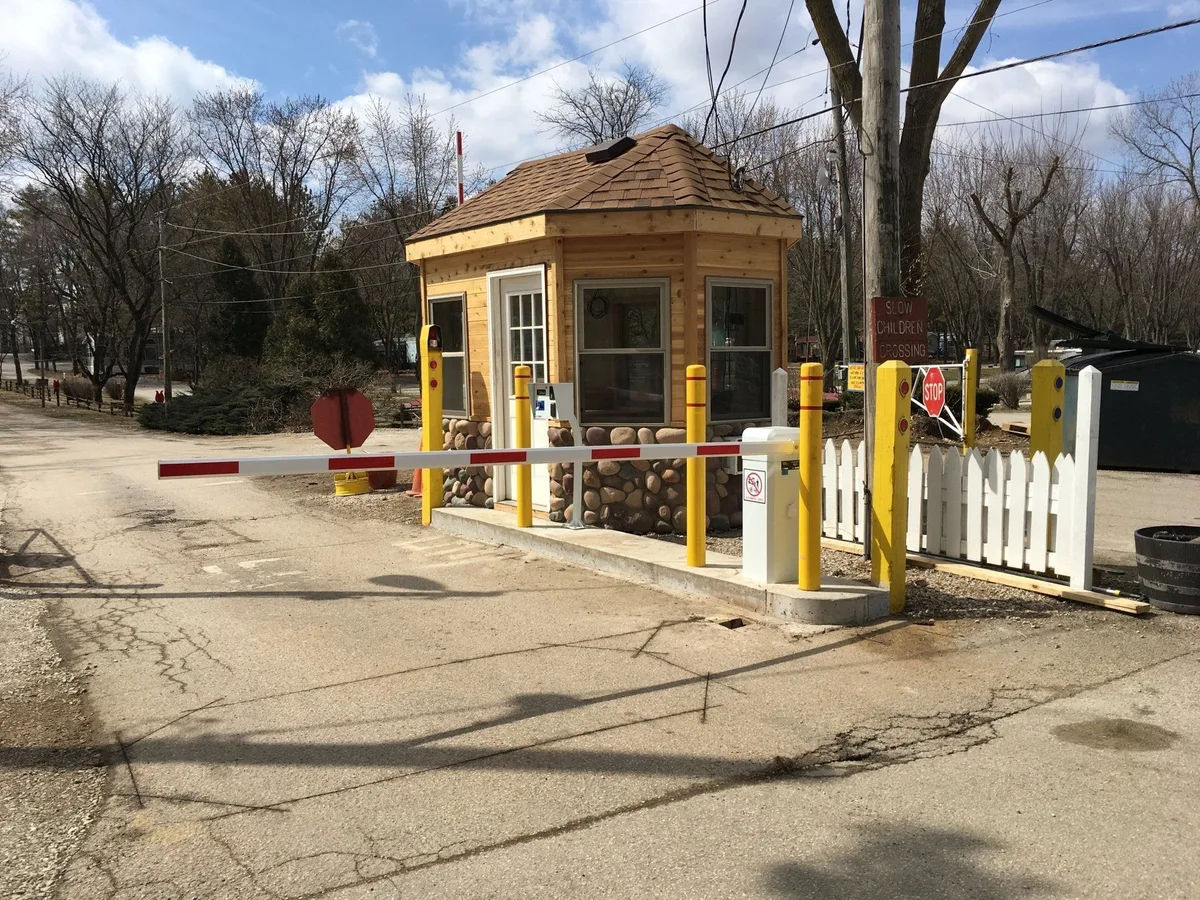

RV Park Parking and Gate Systems
RV parks introduce hardware requirements that standard parking gates are not built to handle. A 40-foot Class A motorhome towing a vehicle is a fundamentally different entry scenario than a sedan pulling into a downtown garage.

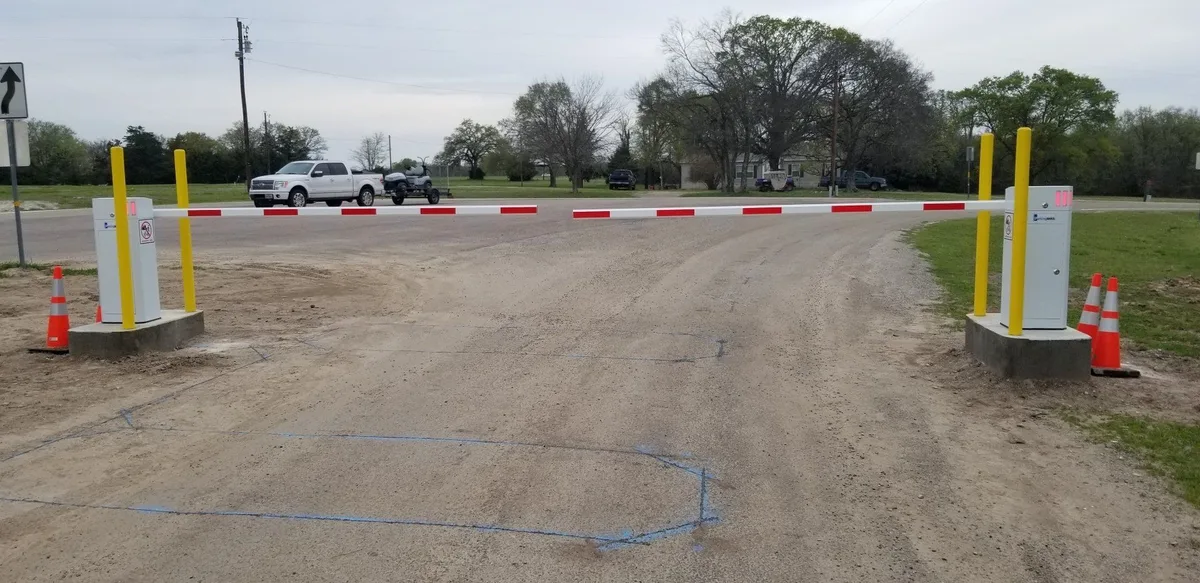

Parking BOXX rv park access control gate systems address these requirements with several RV-specific configurations. Gate arm lengths extend to accommodate wider lanes — RV entry lanes are typically 14 to 16 feet wide compared to the standard 10-foot parking lane. Arm cycle timing is slower and includes configurable delay periods so long vehicles with trailers clear the gate zone before the arm descends. Height clearance for the gate structure and any overhead signage must meet a minimum of 13.5 feet for Class A motorhomes, and 14 feet is recommended for fifth-wheels.
For RV parks with pull-through sites, the entry system can be configured to work with a single credential per reservation even when the guest has both a tow vehicle and an RV. License Plate Recognition is particularly effective here because it eliminates the need for the driver to reach a keypad from a high cab — the camera reads the plate automatically and the rv parking gate opens without any driver interaction.
Dump station access is another consideration unique to RV parks. Parking BOXX gate controllers can manage secondary access points with separate credentials, so dump station use can be restricted to registered guests or offered as a paid service to non-guests passing through.
Campground Intercom Systems
A campground intercom at the gate entry point is not a luxury feature — it is the communication bridge between guests and management when automated access does not resolve the situation. A guest arrives with a booking confirmation but the wrong access code. A delivery driver needs one-time entry. A camper locked out at 11 PM needs help.

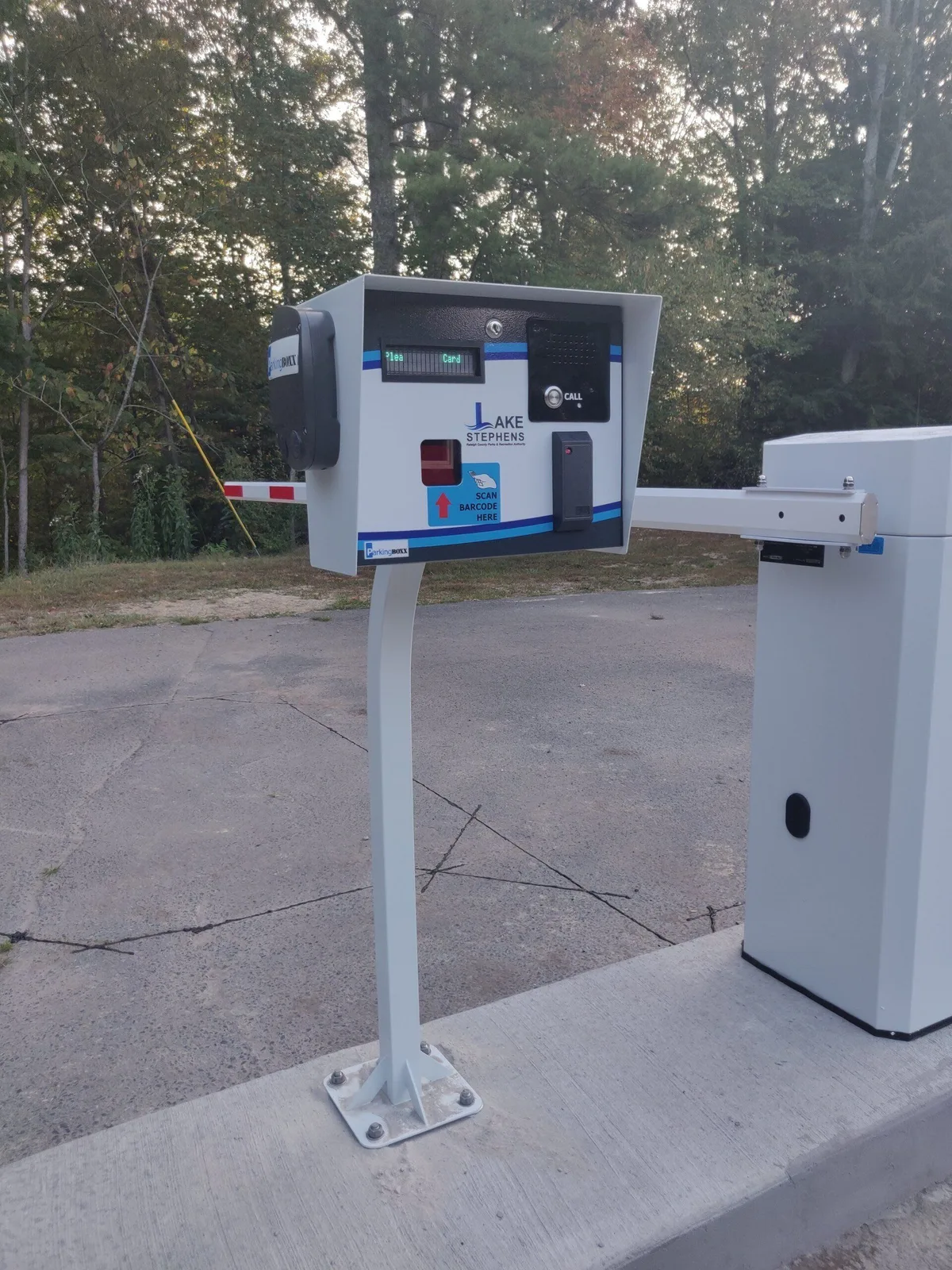

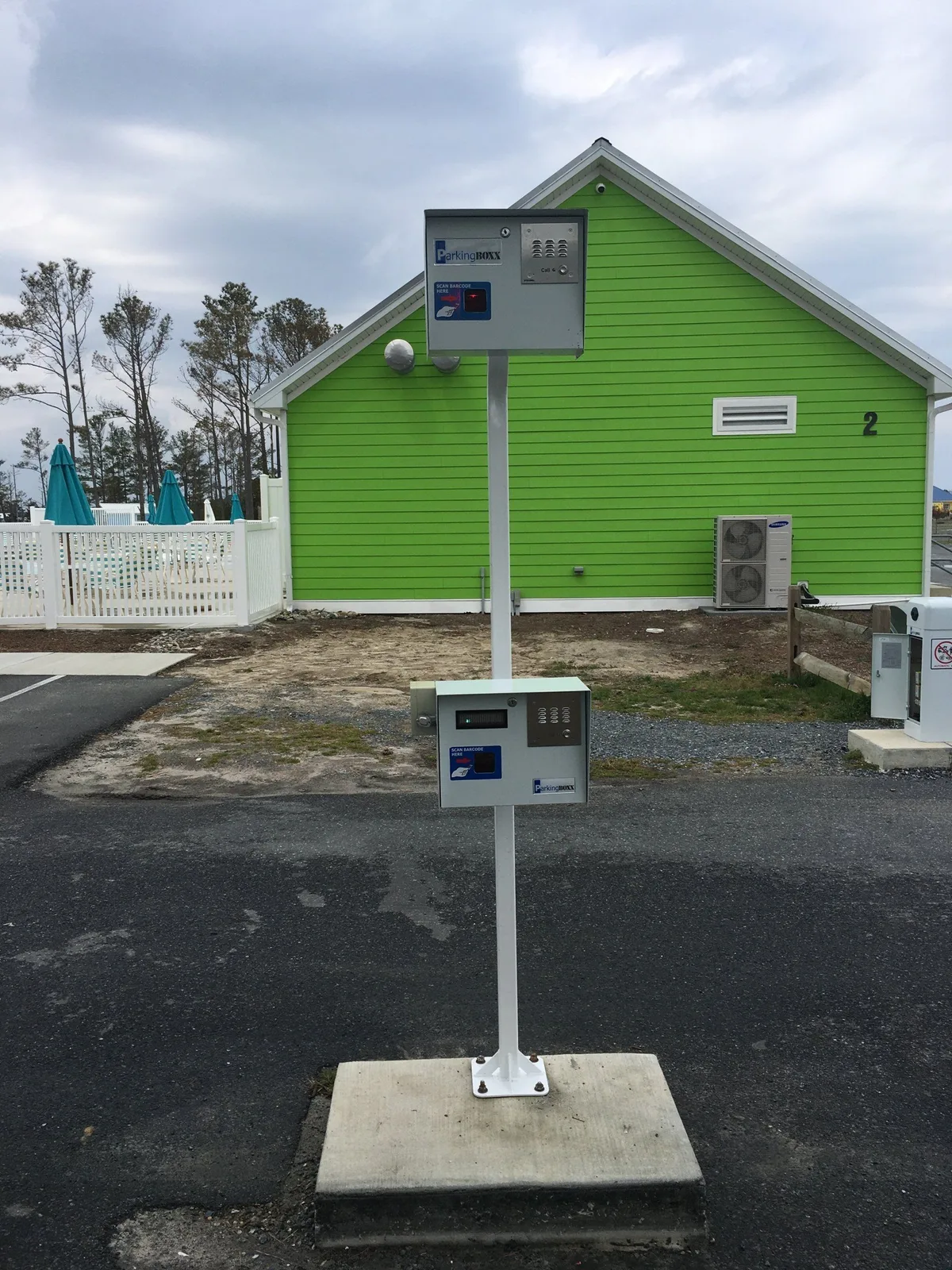

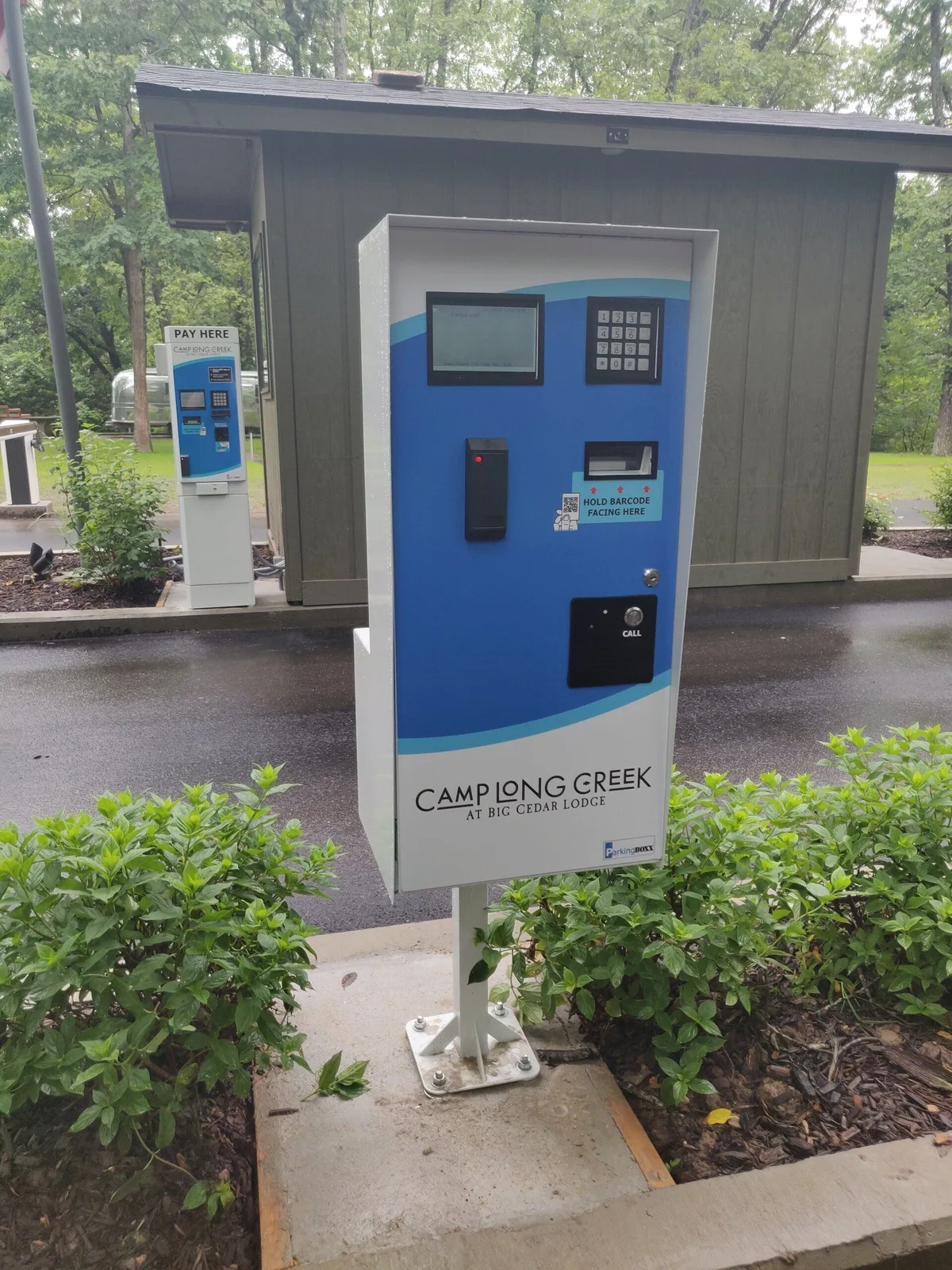

Parking BOXX campground intercom units are mounted directly on the gate entry station. When a guest presses the call button, the system connects to the campground office phone during business hours or to the manager's mobile phone after hours. Two-way audio allows the manager to verify the guest's identity, look up their reservation, and then open the gate remotely — all from a single phone call.
The combination of intercom and remote gate control through CloudEASE is what makes unstaffed operation practical. A manager at home can handle a late arrival in under two minutes: answer the intercom call, confirm the reservation, tap the gate-open button in the CloudEASE app, and the guest drives through. No one has to drive to the property. No one has to stand at the gate in the rain.
For properties with multiple entry points — a main vehicle gate, a pedestrian gate, and a service entrance — each intercom connects to the same management dashboard. The manager sees which gate is calling and responds accordingly. Parking BOXX access control systems support multi-gate configurations with centralized intercom management.
Short-Term Rental Access Automation
The campground and RV park market now overlaps with the short-term rental economy. Glamping sites, cabin rentals, yurt villages, and Airbnb-style rural properties all share the same access challenge: guests book online, arrive at a gated property, and expect to get in without meeting the host.
Automated gate access for short term rentals works by generating a unique credential for each booking. When a reservation is confirmed, the system creates a PIN code or QR code that activates at check-in time and expires at checkout. The guest receives the code via email or text message as part of the booking confirmation. On arrival, they enter the code at the gate keypad or scan the QR code, and the barrier opens. Zero host interaction required.
This model works for individual vacation rental owners managing a single gated cabin and for operators running 50-unit glamping resorts. The credential management scales because CloudEASE handles code generation, activation scheduling, and expiration automatically. Property managers see all active credentials on a single dashboard, revoke access instantly if needed, and pull reports showing every gate transaction.
Integration with property management platforms is the final piece. When a booking is created in the reservation system, the access credential is generated automatically. When a booking is cancelled, the credential is deactivated. This closed loop eliminates the most common failure point in rental access — the host forgetting to send the gate code.
Parking BOXX manufactures the gate hardware, the credential readers, and the CloudEASE parking management software that ties everything together. Campground and rental property operators deal with one company for the entire system, from the concrete foundation of the gate post to the software dashboard on their phone. That direct relationship with the manufacturer means custom configurations for unusual property layouts, firmware updates pushed directly to the gate controller, and technical support from the engineers who designed the system.
The Layout
The first decision required is to determine how you would like to configure the entry and exit lanes. Many of our customers include one or more of these configurations — depending on the layout of their campground.
- The layouts below assume you are using ACCESS CONTROL only — not collecting revenue at the kiosks. If you are considering collecting revenue, refer to our Flat Rate or Full Featured systems. Most customers collect deposits for RFID cards for seasonal guests (e.g. $25) to cover card replacement. Short-term visitors typically receive printed barcode passes. Revenue collection for both is completed in the office.
- The layouts assume you are controlling ENTRY only, not exit — the most common configuration for campgrounds. Larger facilities may also wish to control exit for strict anti-passback, but this requires additional equipment.
- Any lane width requirements should be confirmed with your local jurisdiction and fire department, as they may require minimum widths for emergency vehicles and may require emergency-open options when barrier gates are unattended.

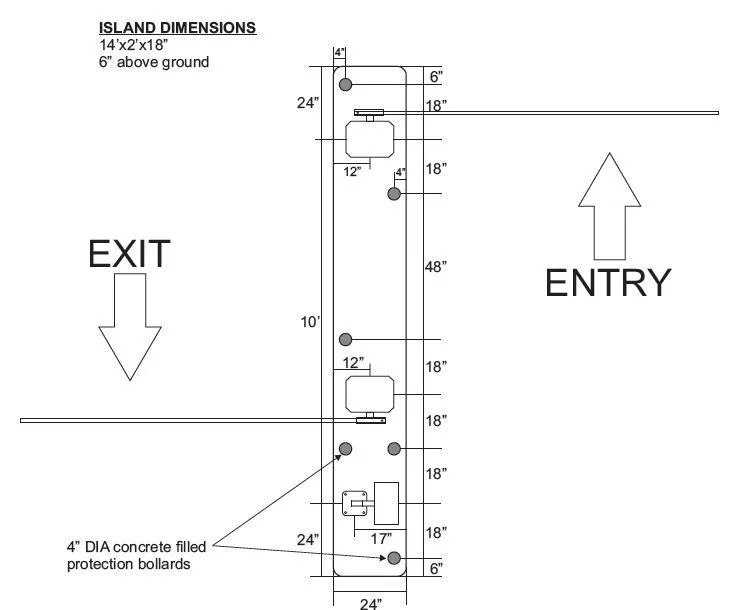

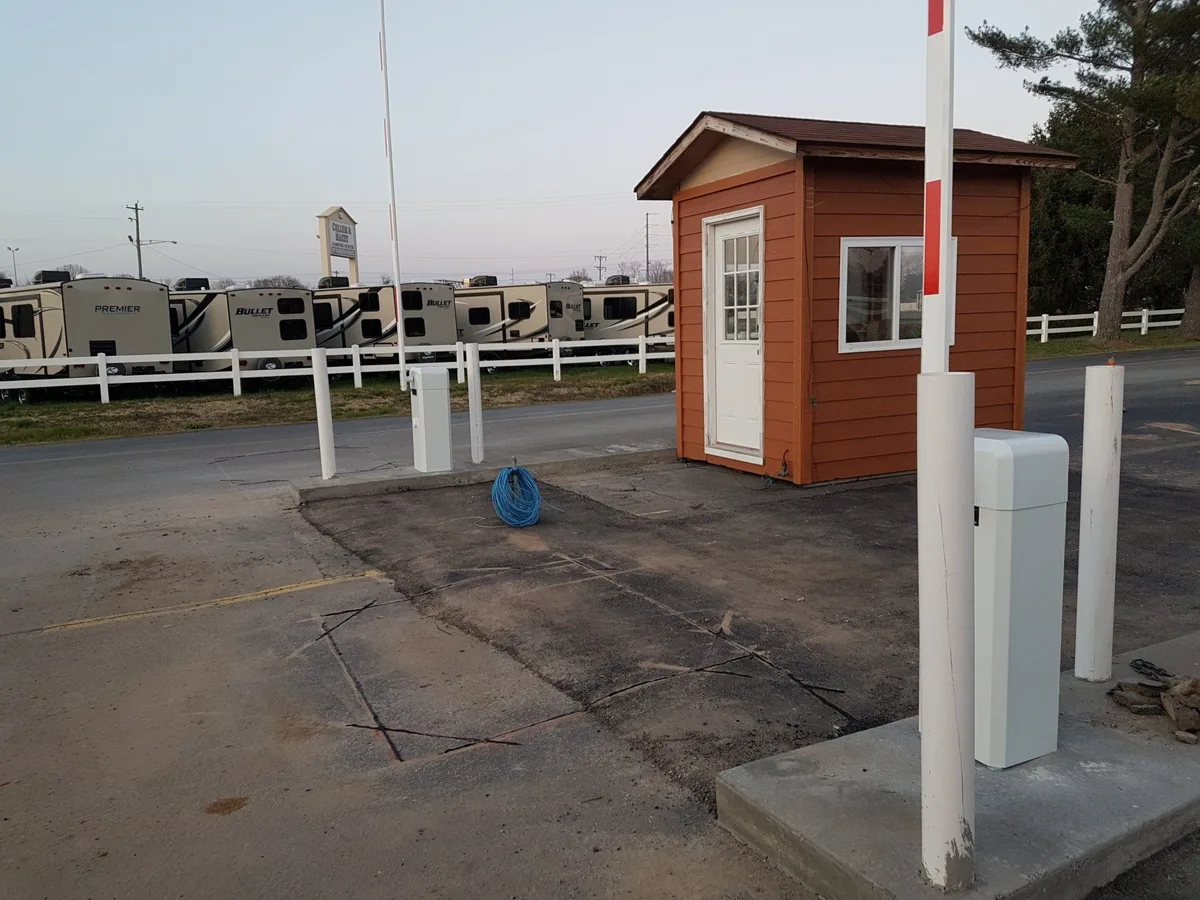

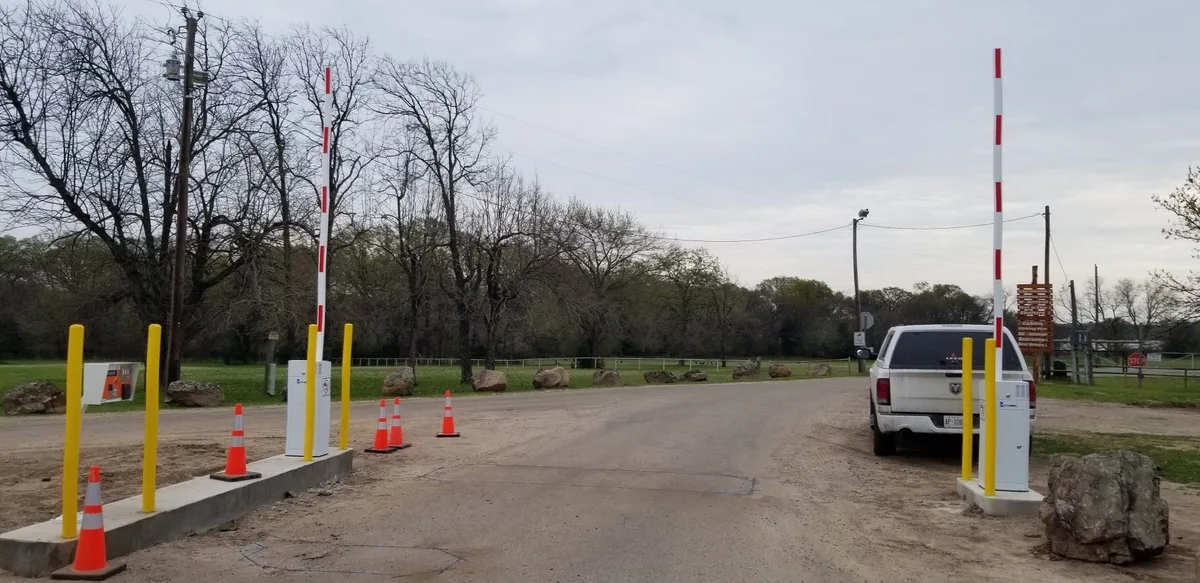

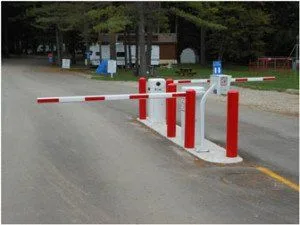

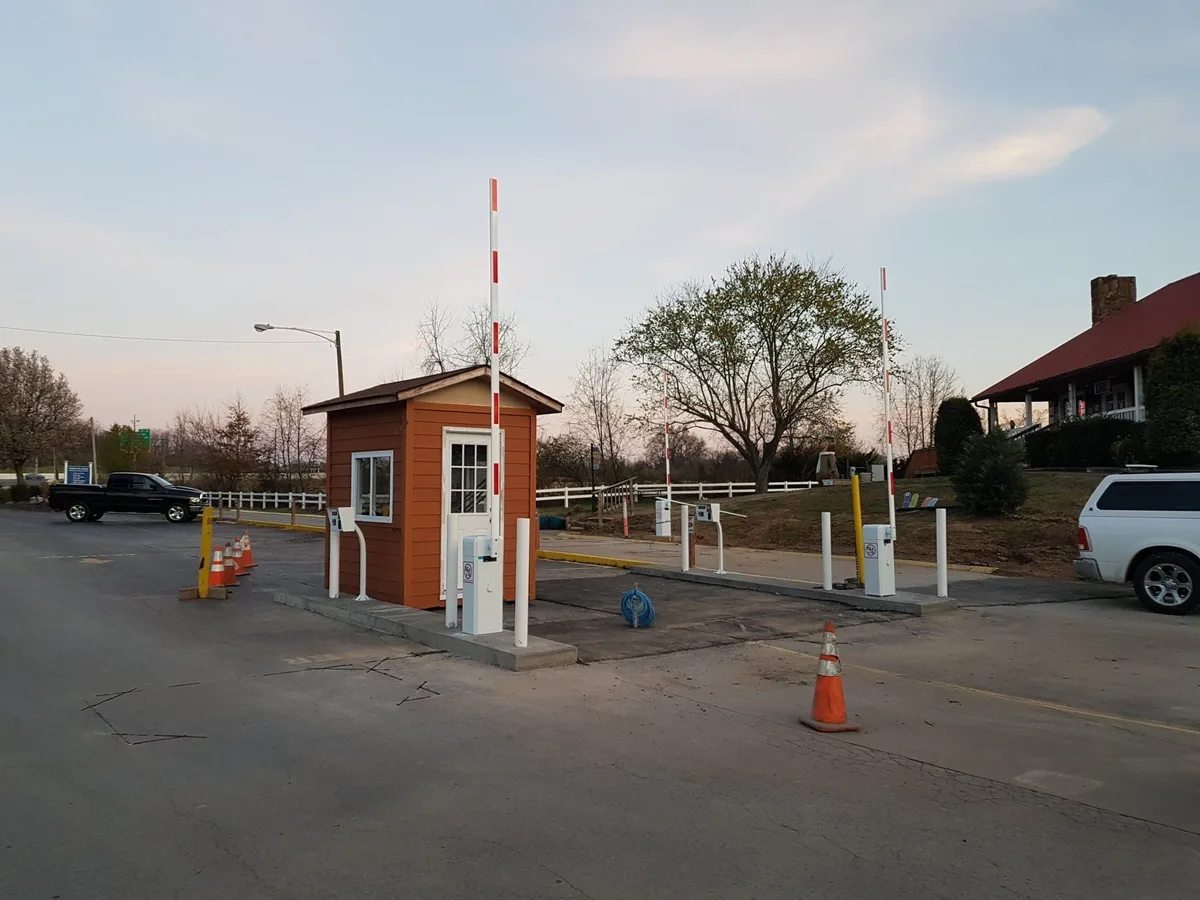

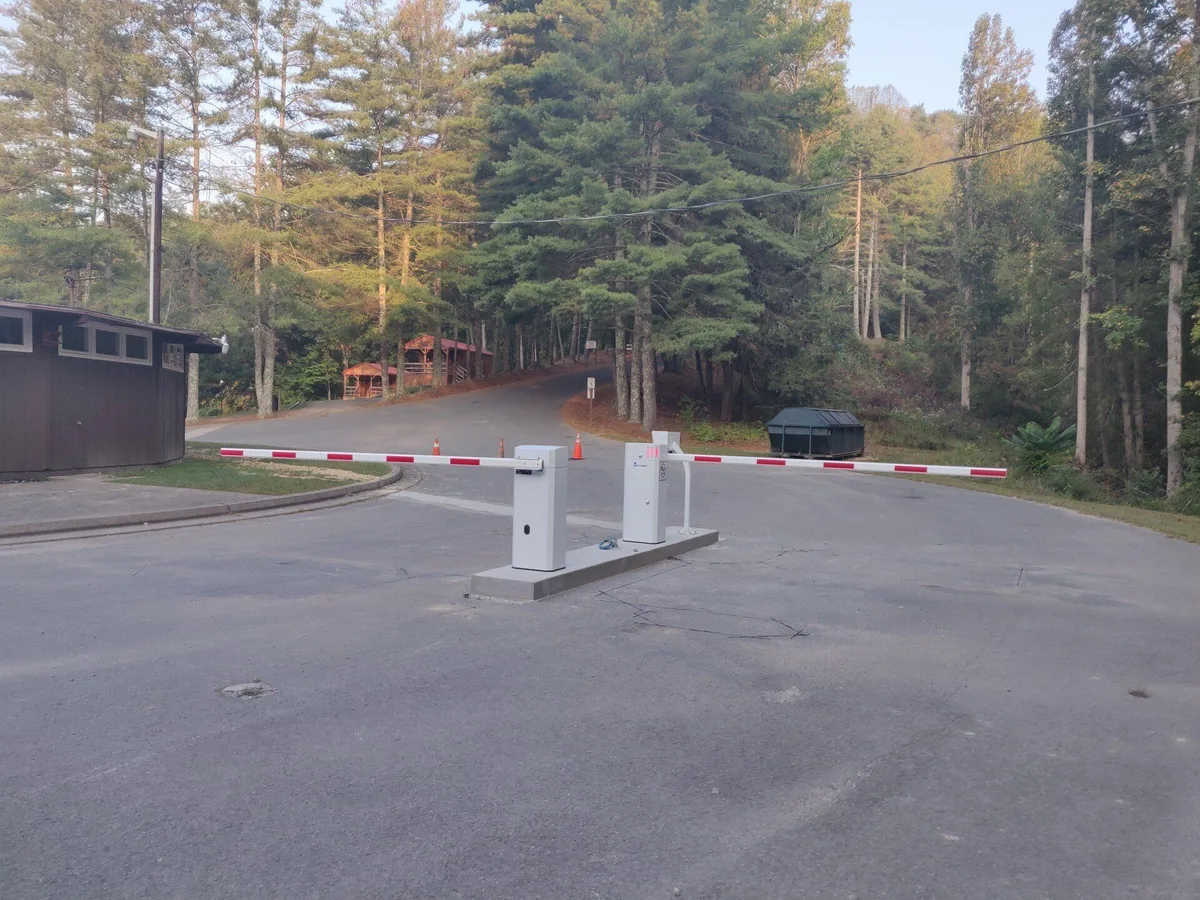

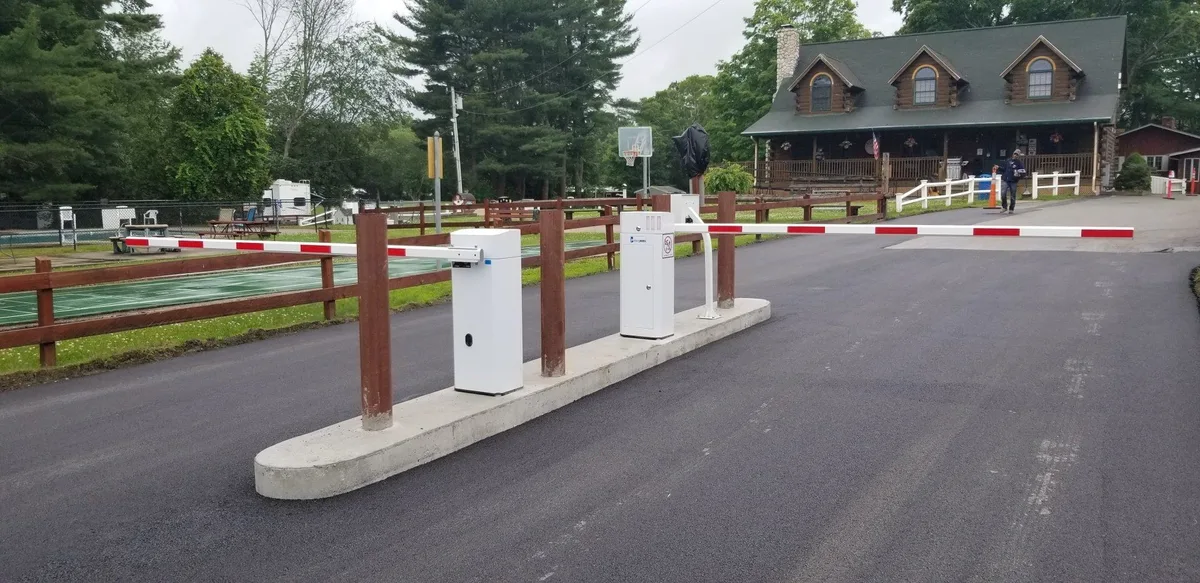

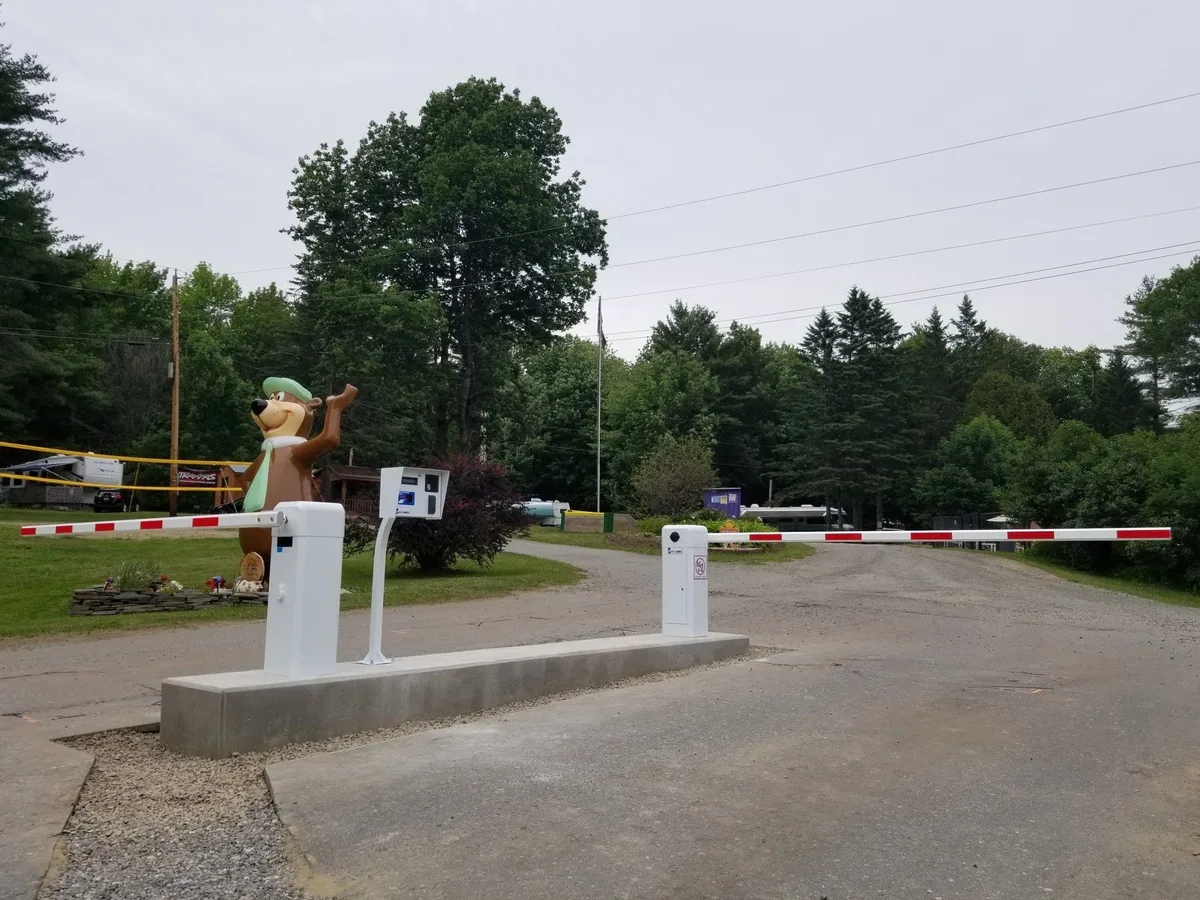

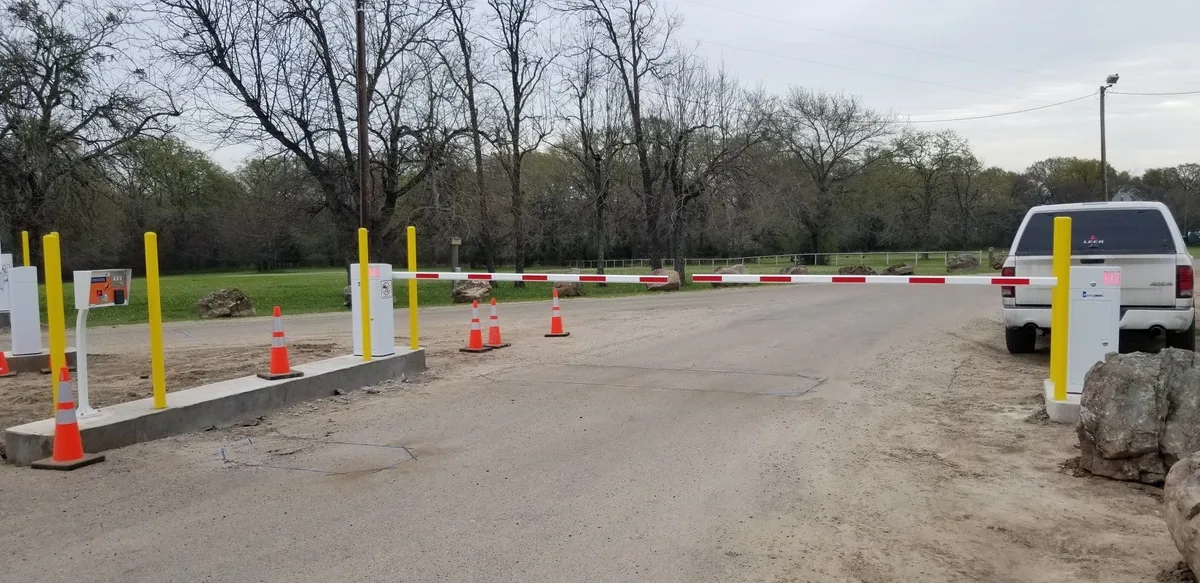

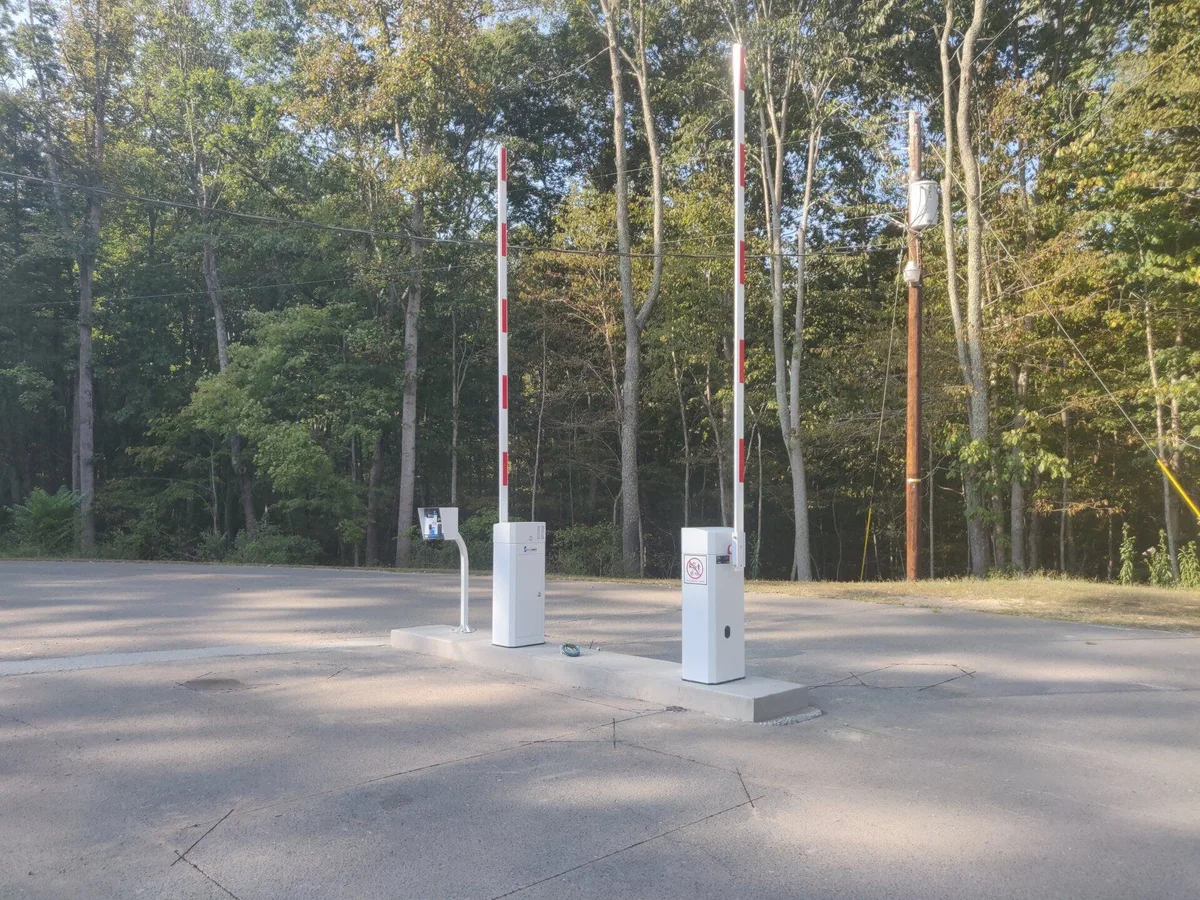

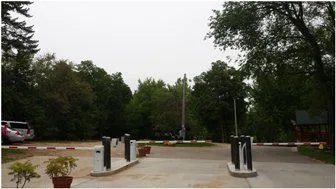

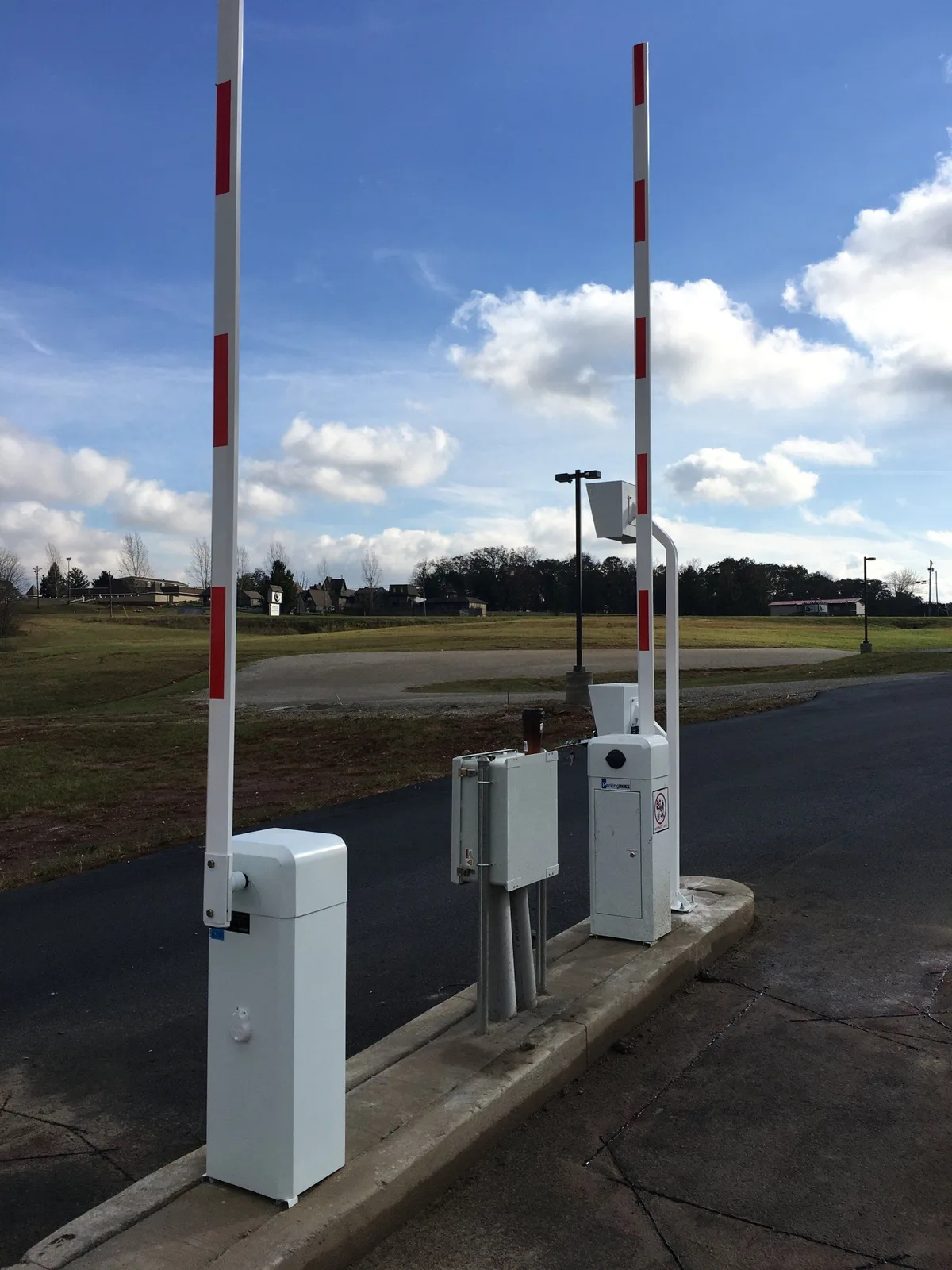

THE CENTER ISLAND
For this configuration, we recommend a lane width of 26', which allows for 12' wide lanes plus a 2' wide island. If you don't have large RVs, it may be possible for this area to be as narrow as 22', which allows for 10' wide lanes plus a 2' wide island. Many of our campground customers have even wider lanes, so our barrier gate arms may be as long as 18'. There must be a minimum of 10' between the center of the control device and the center of the barrier gate.

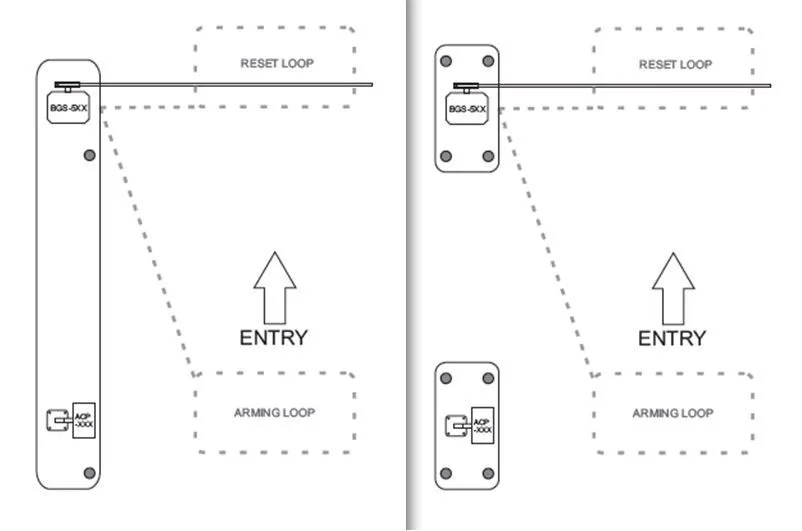

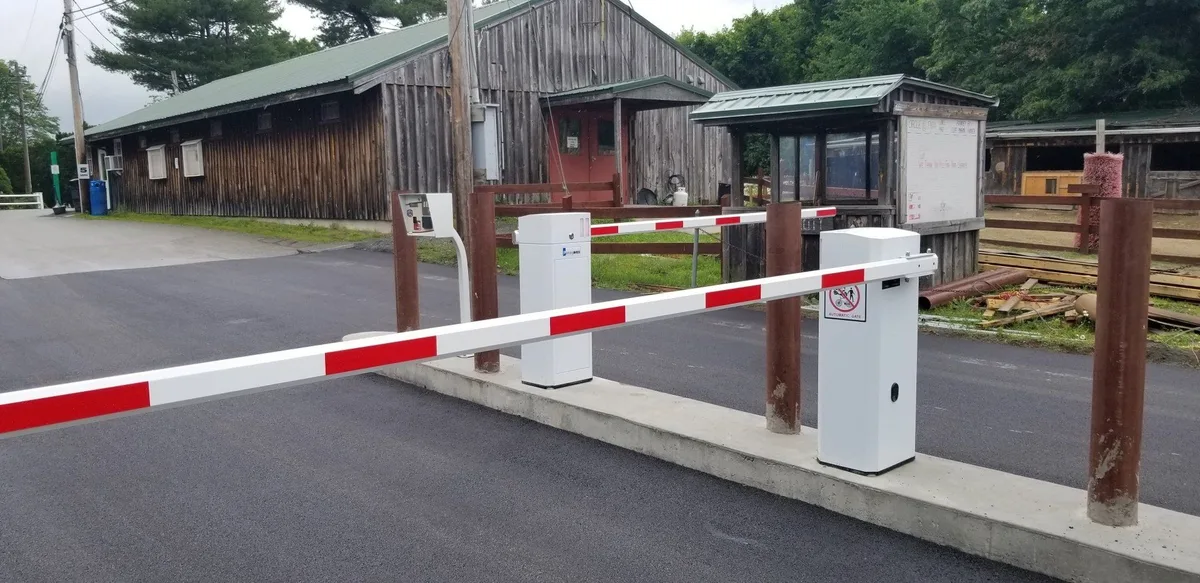

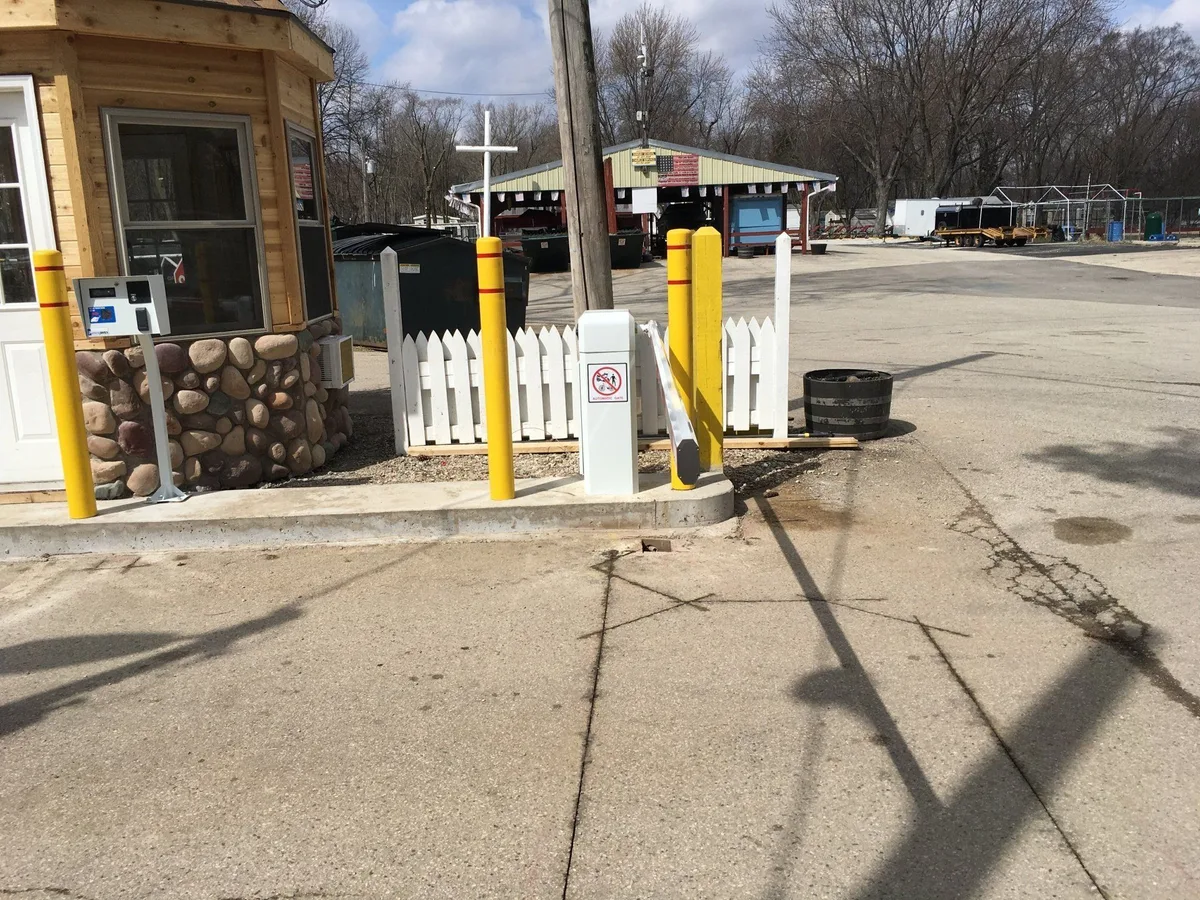

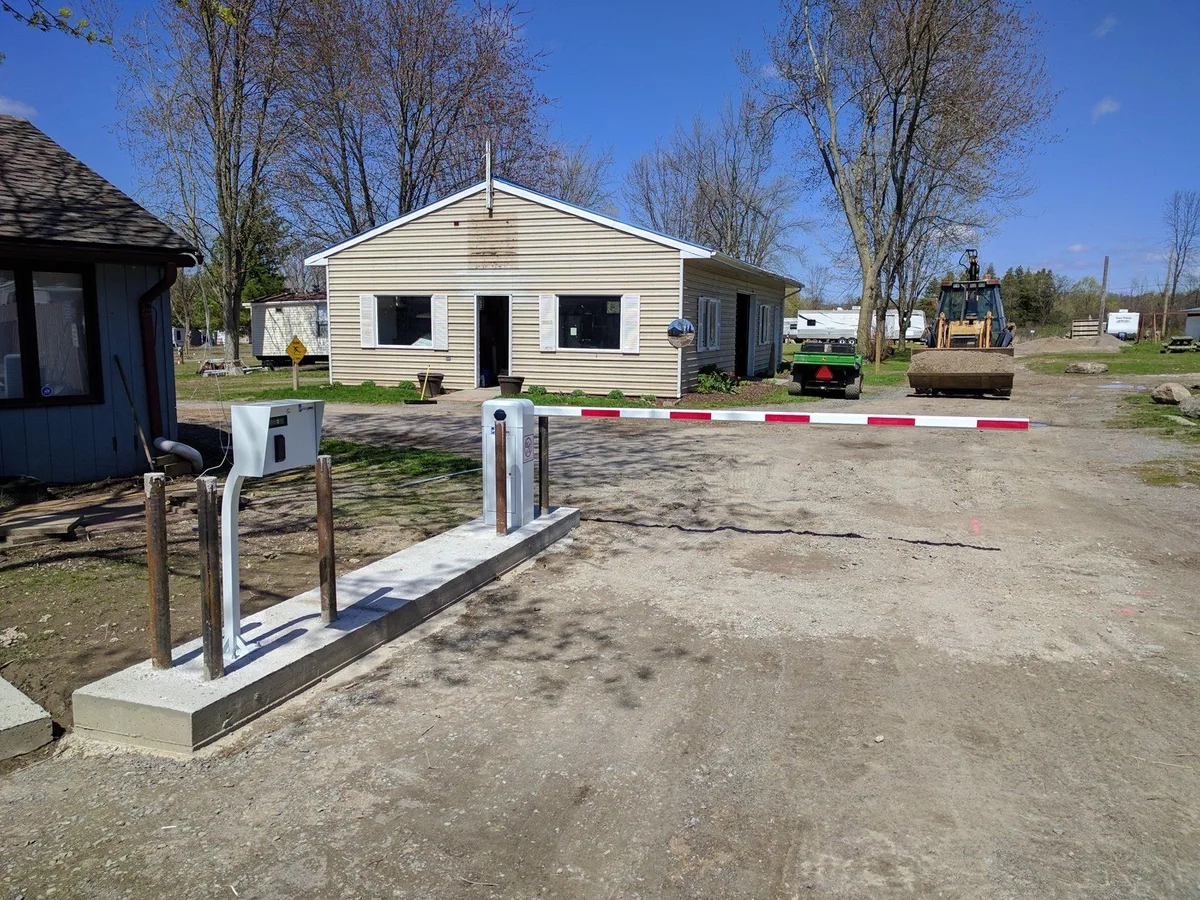

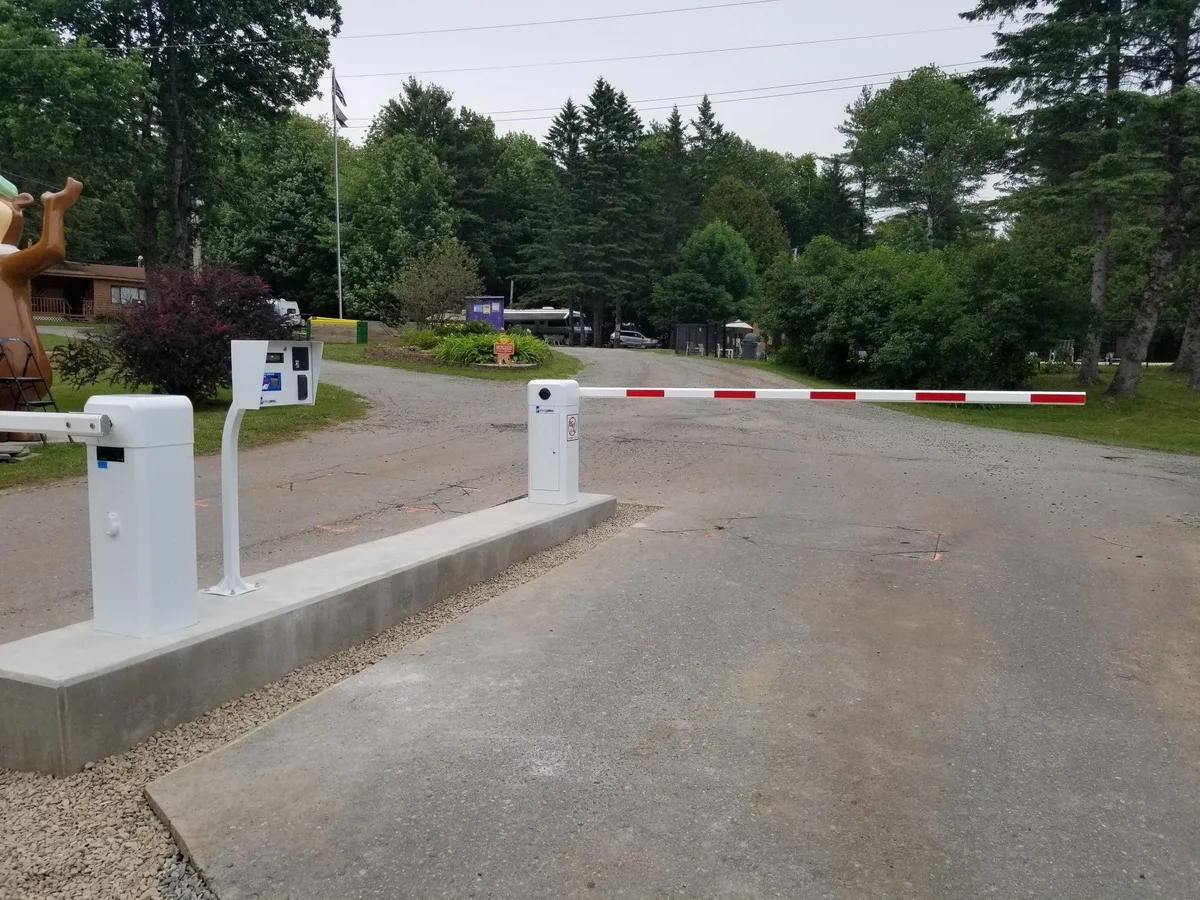

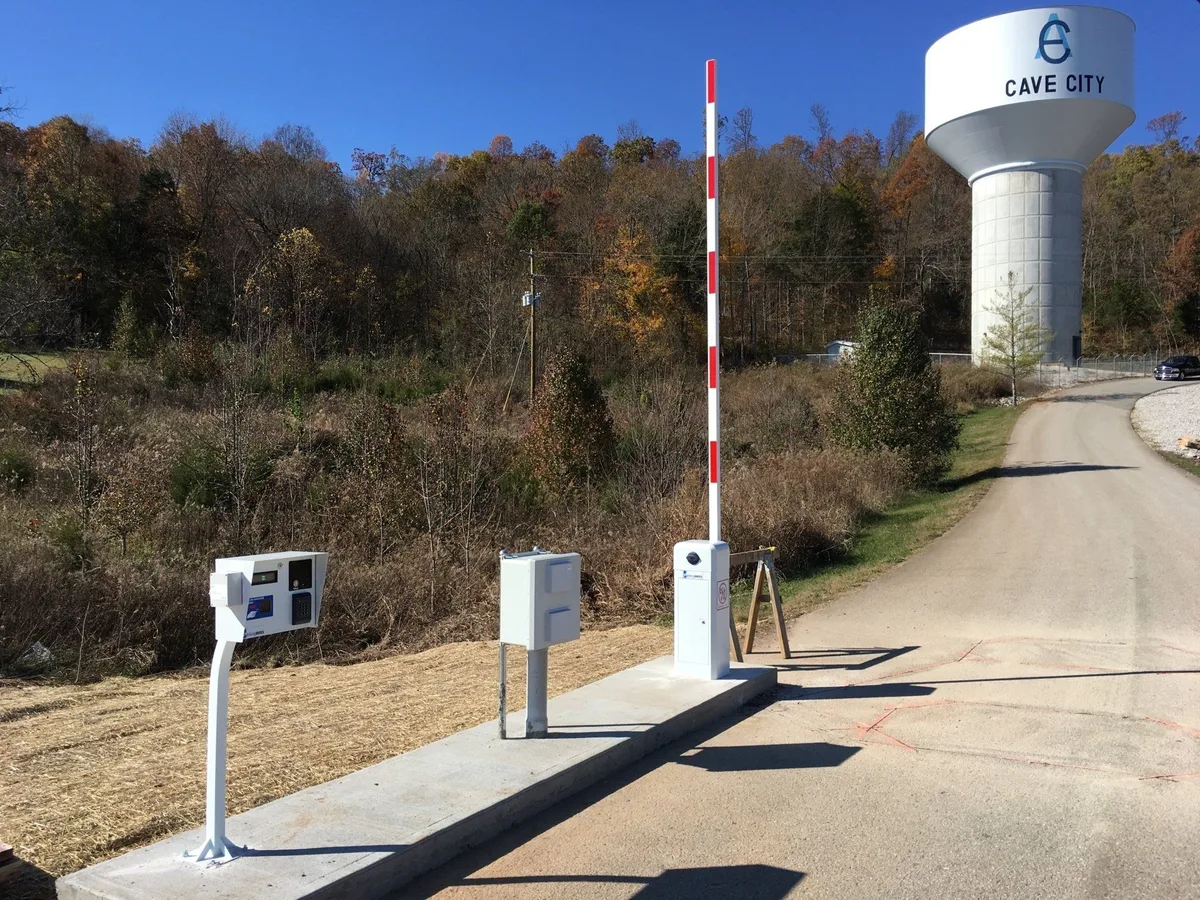

THE ENTRY ISLAND

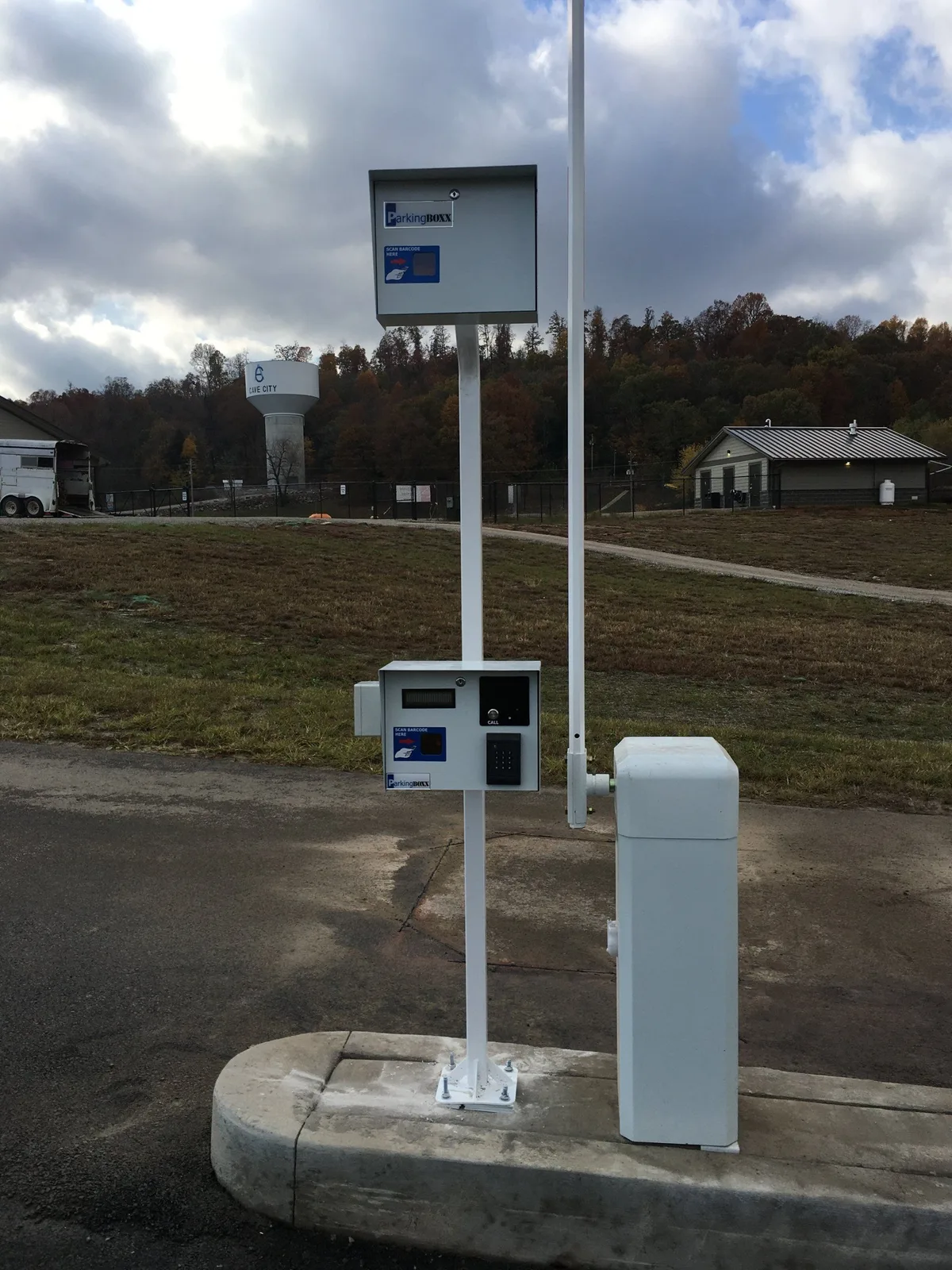

For this configuration, we recommend a lane width of 14', which allows for a 12' wide lane plus a 2' wide island. (Or you can put the island in the grass if you don't have 14'.) The arm may be as long as 18' or may be cut to a custom length. There must be a minimum of 10' between the center of the control device and the center of the barrier gate.

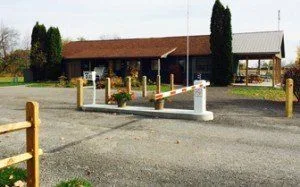

To save on concrete costs, some sites pour smaller islands — as shown in the right side of the image below.

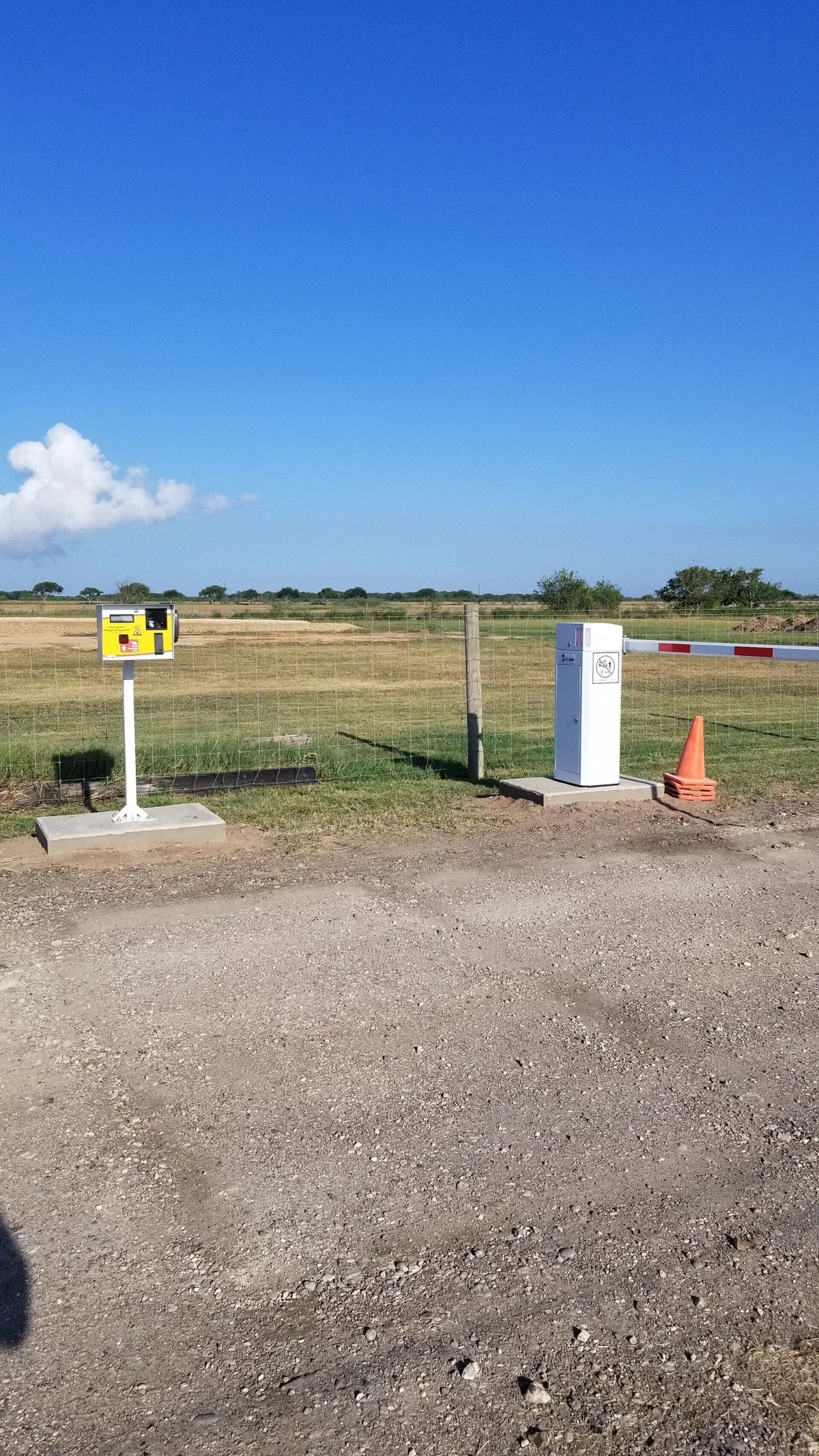

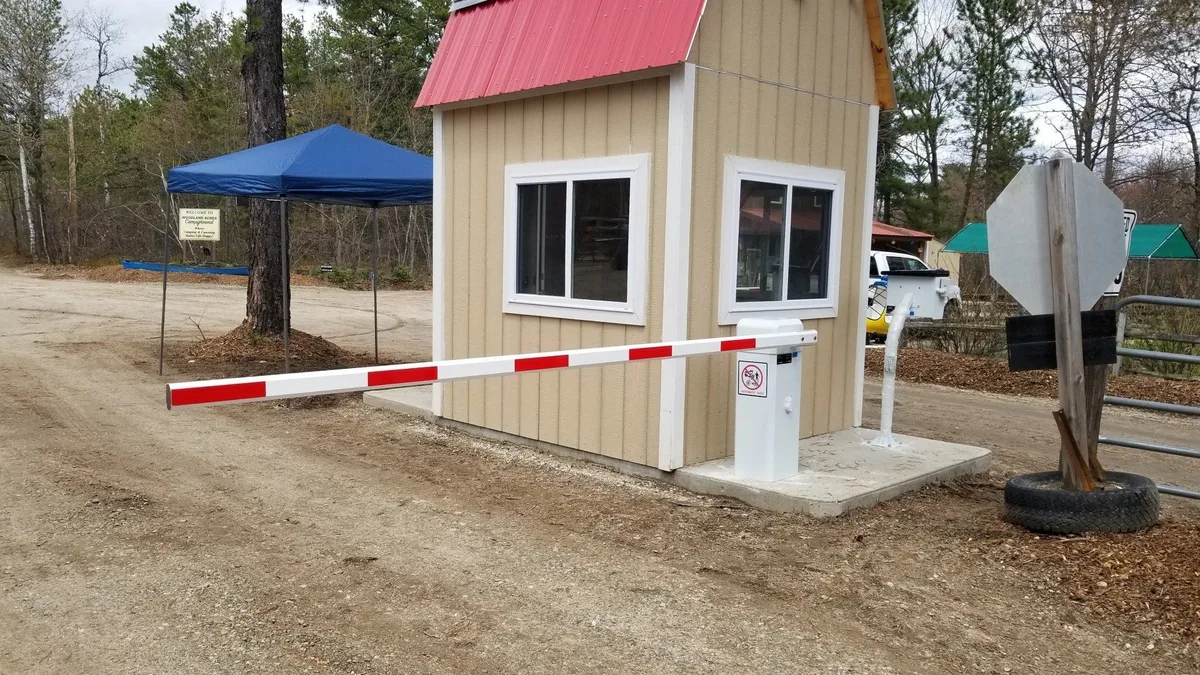

THE "FREE OUT" – GATE ISLAND
For this configuration, we recommend a lane width of 14', which allows for a 12' wide lane plus a 2' wide island. (Again, the island may be placed in the grass or outside of the driving area.) The arm may be as long as 18' or may be cut to a custom length. The Open Loop will detect a vehicle's presence and open the gate arm. This gate ensures that vehicles do not enter via this lane and that vehicles are required to slow down to approach the gate before it opens.
THE BIDIRECTIONAL LANE
When you need traffic moving in both directions but you don't have 22'+, this is a bidirectional traffic flow. This is recommended only for low-volume traffic areas — if many vehicles are attempting to enter/exit in the same lane at one time, this configuration is not recommended.
Frequently Asked Questions
How do campgrounds control gate access?
What is the best intercom system for a campground gate?
How much does an RV park gate system cost?
Can campground gates work without an attendant?
How do you automate gate access for vacation rentals?
What security systems do campgrounds use?
Ready to Secure Your Campground or RV Park?
Parking BOXX manufactures, installs, and supports gate systems, intercoms, and access control hardware for campgrounds and RV parks throughout North America. Whether you operate a 20-site seasonal campground or a 500-space RV resort — every system is built to your property's specifications, directly from the manufacturer. Parking Made Easy®.
