Parking Access Control Systems
Control who enters and exits your lot, garage, or gated facility. RFID, license plate recognition, app-based, and proximity card configurations — manufactured and installed by Parking BOXX across North America.
Access Control Equipment and Software
Parking access control systems from Parking BOXX restrict vehicle entry and exit at parking lots, garages, and gated facilities using RFID credentials, license plate recognition, app-based access, or any combination of the three. Every system is backed by CloudEASE — cloud-based management software that logs every access event, manages permit databases, and provides real-time reporting. Whether you need a simple single-lane RFID reader for an employee lot or a multi-level garage with 20 lanes of LPR, Parking BOXX designs, manufactures, and installs the complete solution.
What's included in an access control system?
A complete parking access control system combines lane hardware with cloud management software. Lane hardware options depend on the credential type — RFID systems use pedestal-mounted readers, LPR systems use AI camera arrays, and app-based systems use cellular or Bluetooth receivers. All configurations pair with barrier gates to physically control vehicle flow and feed data into CloudEASE.
- Access control pedestals (flush-mount, surface-mount, or in-ground)
- RFID credential readers — proximity (2–4 in) or long-range (10–25 ft)
- LPR camera arrays with AI plate-match engine
- Barrier gates — straight arm or articulating, 8–20 ft
- CloudEASE access control and permit management software
- Intercoms and entry call boxes for visitor access
- Loop detectors and vehicle sensors
Verticals served
Parking BOXX access control systems are in active use at universities and colleges, hospitals and medical centers, hotels and resorts, city and municipal facilities, business parks, campgrounds, marinas, and gated commercial properties. Each vertical has specific configuration requirements — university lots need multi-tier permit classes, hotel lots may need PMS integration — and Parking BOXX engineers every deployment to match the operating environment.
- Universities and colleges — faculty, staff, and resident permit tiers
- Hospitals — staff vs. patient/visitor separation
- Hotels and resorts — guest-only or valet staging, PMS integration
- Municipalities and government campuses
- Business parks and office complexes
- Campgrounds, marinas, and gated recreational facilities
Access Control Equipment
Parking BOXX manufactures or sources every hardware component in a complete access control system. All equipment integrates natively with CloudEASE so you manage everything from a single dashboard.

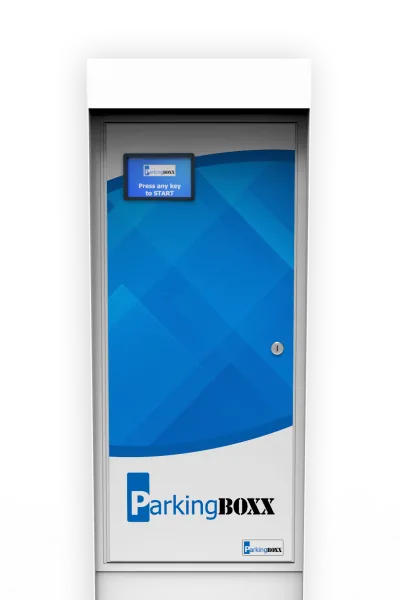

ACB-5xx Access Control BOXX
The ACB-5xx is Parking BOXX's purpose-built access control unit. Supports RFID, proximity, long-range AVI, and LPR inputs — all managed through CloudEASE. Weatherproof enclosure, heater option, and integrated power supply for outdoor installations.
Hotel Guest Access Control System
At entry, guests present their room key card or a credential registered at check-in — the barrier gate opens automatically and the visit logs against their reservation. Exit lanes include an optional Guest Card Return slot — guests drop their room key card into the pedestal as they leave.

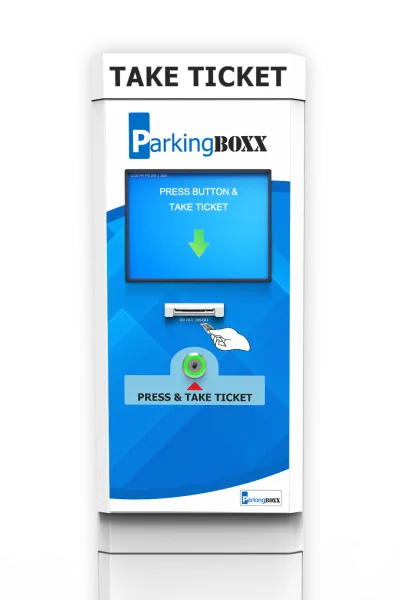

Entry BOXX Ticket Machine
For revenue-collecting facilities, the Entry BOXX dispenses time-stamped tickets at entry. Integrates with CloudEASE for real-time occupancy tracking, RFID override for permit holders, and interoperability with all Parking BOXX pay station models.
License Plate Recognition (LPR)
LPR is part of a layered approach for maximum reliability and automation — the camera reads the plate as the vehicle pulls up, and if it matches a credential the gate opens automatically. Drivers without a recognized plate continue through the normal ticket or pay station flow in the same lane. No separate lane required.
Pedestal Mounting Options
Flush-mount, surface-mount, and in-ground pedestal configurations. Dual-height reader options for ADA compliance and standard-vehicle clearance. Powder-coated aluminum with integrated conduit routing.
View Pedestal Options →
RFID and Proximity Readers
HID proximity readers (2–4 ft range) for card and fob credentials. Long-range RFID readers (10–25 ft) for windshield transponder tags — the gate opens before the car stops. Both support Wiegand and OSDP protocols.

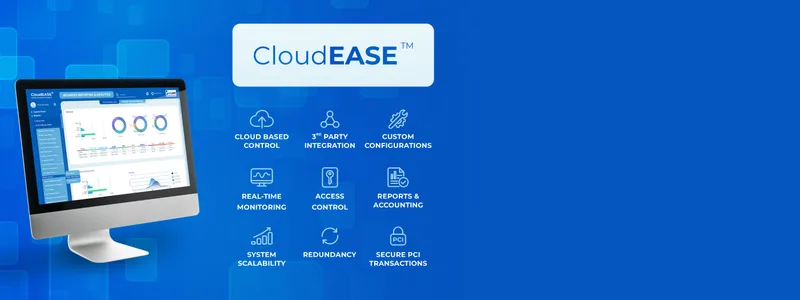

CloudEASE Access Control Software
Cloud-based permit and access management. Manage credential databases, set time-of-day and day-of-week access rules, run occupancy reports, and review every entry/exit event log.
Learn About CloudEASE →
Intercom and Call Box
Entry intercoms allow visitors without credentials to call an attendant or automated dispatch system for manual gate release. Essential for visitor lanes, delivery access, and after-hours override at unstaffed facilities.

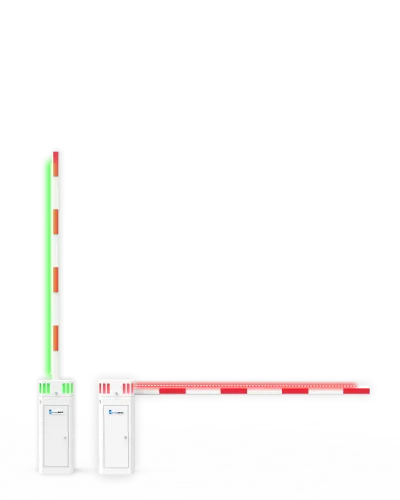

Barrier Gate Systems
BGS-5xx barrier gates with direct-drive motors, breakaway safety arm, and red/green illuminated panels. Straight arms 8–20 ft. Articulating folding-arm models for low-clearance garages. Battery backup with automatic open-on-power-loss for uninterrupted operation.
View Barrier Gates →
Parking Lot and Parking Garage Access Control Solutions
Parking BOXX access control scales from a single entry lane at a surface lot to a multi-level parking structure with 20+ lanes. Every configuration starts with lane count, credential type, and revenue requirements — then Parking BOXX engineers the right hardware and software stack.
- Single-lane lots: One entry reader and one barrier gate. Non-revenue access for employee or tenant parking. CloudEASE manages permit lists and logs all events.
- Multi-lane surface lots: Separate entry and exit lanes with matched reader pairs. Express RFID lanes allow permit holders to bypass ticketed lanes at mixed-use facilities.
- Parking garages: Multi-level configurations with one reader per lane. Articulating barrier gates for lanes with low-clearance overhead obstructions. Dedicated staff lanes separate from public ticketed lanes.
- Power-resilient lanes: Barrier gates include battery backup with automatic open-on-power-loss. Systems can be connected to industrial UPS units or backup generators for continuous operation during outages.
- Express RFID lanes: Permit holders use long-range windshield tags to enter and exit without stopping — the gate opens at 10–25 ft range while the car is still moving at approach speed.
Facilities We Serve
Access control requirements differ significantly by facility type. Parking BOXX has deployed configured solutions across every major vertical — with the experience to match equipment choices to each operating environment.
Universities & Colleges
Multi-tier permit classes for faculty, staff, students, and residential lots. RFID and LPR configurations. Integration with campus ID systems and permit portals.
Hospitals & Medical Centers
Separate staff, patient, and visitor zones with different credential tiers. 24/7 access with battery-backup gates. LPR for physician permit lots and deck-level access control.
Hotels & Resorts
Guest-only lot control with PMS integration (Oracle Opera, Maestro) for automatic credential issuance at check-in. Valet staging lanes and app-only access options.
Municipalities & Government
Employee permit lots, public parking with revenue control, permit-parking programs. Vendor-agnostic credential standards and government procurement support.
Campgrounds & Marinas
Seasonal pass-holder access, day-use fee collection, and remote lane configurations. Battery backup with auto open-on-power-loss keeps lanes operational during outages. LPR for registered-vehicle verification.
Office & Business Parks
Tenant and employee permit management. After-hours visitor access via intercom. Multi-building campuses with unified CloudEASE permit database. LPR as part of a layered approach for maximum reliability and automation at staff entry lanes.
Vehicle Access Control
A standard Parking BOXX vehicle access control lane combines four components: an access control pedestal with a credential reader, an Entry BOXX or pay station (for revenue configurations), a barrier gate, and CloudEASE software managing the permit database. At entry, the driver presents a credential; CloudEASE validates it against the active permit list; if authorized, the barrier gate opens. The same logic runs in reverse at the exit lane.
LPR-based lanes replace the reader and credential with a camera array — the plate is read, matched to the permit database, and the gate opens automatically without the driver doing anything. App-only configurations use a smartphone command (Bluetooth or cellular) in place of both reader and plate camera, making them the lowest-cost hardware option.
- Entry BOXX + pedestal reader + barrier gate + CloudEASE — full RFID access control lane
- LPR camera array + barrier gate + CloudEASE — layered approach for maximum reliability and automation
- App/HID Mobile + barrier gate + CloudEASE — smartphone-triggered access, no lane hardware
- Hybrid lanes: RFID primary + LPR secondary for redundancy
RFID and Contactless Access Technology
RFID is the most widely deployed credential technology in parking access control because it works at the speeds and distances of actual vehicle approach — no stopping required with long-range tags.
How RFID works in parking
Radio-frequency identification uses a reader antenna to energize a passive transponder tag and receive back a unique identifier code. In parking, two ranges are common:
- Long-range (10–25 ft): An overhead or pedestal-mounted reader interrogates windshield-mounted transponder tags while the vehicle is still in the approach lane. The gate opens before the car reaches the stop line — no hesitation, no queue building up behind the vehicle.
- Proximity (2–4 in): The driver holds a card or fob up to the reader face. Common for pedestrian access points, secondary verification lanes, or facilities that want deliberate credential presentation. Supports HID 125 kHz and 13.56 MHz (MIFARE/DESFire) format cards.
Both reader types communicate with the barrier gate controller and CloudEASE using Wiegand or OSDP (Open Supervised Device Protocol). All credential reads are time-stamped and stored in CloudEASE, producing a complete audit log of every entry and exit event.
HID credential formats
Parking BOXX readers support the full HID credential ecosystem — one of the most widely deployed access control standards in North America:
- HID Proximity (125 kHz): ISO/IEC 14443 cards and fobs — the legacy standard still in active deployment at tens of thousands of facilities.
- HID iCLASS / SE: 13.56 MHz smart card platform with encrypted sector data, supporting higher security environments like healthcare and government.
- HID Mobile Access: NFC and Bluetooth credential delivered to the driver's iPhone or Android. The phone acts as the credential — no physical card issued. Works with both tap (NFC) and hands-free (Bluetooth LE) reader modes.
- UHF long-range tags: Passive windshield transponders read at 10–25 ft. Standard for express lanes, permit parking, and high-volume throughput facilities.
Wiegand protocol is the industry-standard 26-bit or 37-bit interface connecting readers to gate controllers. OSDP is the newer encrypted, bidirectional alternative that supports reader health monitoring and tamper detection.
RFID — Best for
Facilities where credential control and audit trails are the priority. RFID is not fooled by similar-looking plates, works in all weather, and gives you a hard credential to revoke instantly in CloudEASE.
- University and hospital permit programs
- Express lanes — no stopping at entry
- High-security or controlled-access facilities
- Facilities issuing or revoking credentials frequently
- Environments with poor plate visibility (snow, mud, low light)
LPR — Best for
Programs where the vehicle's plate IS the credential. No credential to issue or lose — the permit is tied to the plate number in CloudEASE. Lower hardware cost per space for large registered-vehicle programs.
- Residential or condo building parking
- Hotel guest-only lots (plate registered at check-in)
- Municipal permit programs
- Facilities where frictionless access is the top priority
- Overflow or fallback lane at RFID-primary facilities
How It Works and Integration
Every Parking BOXX access control system is built on the CloudEASE platform — a cloud-hosted access and revenue control engine that connects all lane hardware, manages permit databases, and provides reporting in real time.
Credential presented
Driver presents RFID card/fob, windshield tag, license plate, or smartphone credential at the entry lane reader or LPR camera.
CloudEASE validates
The credential identifier or plate number is sent to CloudEASE. The platform checks the active permit database — access rules, time-of-day restrictions, and expiry dates — in under 200 ms.
Gate opens or denies
If authorized, CloudEASE sends an open command to the barrier gate controller. The gate opens, the vehicle enters, and the gate closes behind it. Denied credentials are logged and can trigger alerts.
Event logged and reported
Every grant and denial is time-stamped and stored in CloudEASE. Operators can review full entry/exit logs, run occupancy reports, and export data for compliance or billing purposes.
Hotel PMS integration
For hotel and resort facilities, CloudEASE integrates with the property management system (PMS) to automate credential issuance. When a guest checks in, the PMS pushes the reservation and vehicle details to CloudEASE, which creates a temporary access credential tied to the check-out date. When the guest checks out, the credential is automatically deactivated — no manual management required.
Supported PMS platforms include Oracle Opera and Maestro. Other PMS integrations are available on request via API.
Installation and support
Parking BOXX manages the full installation lifecycle: site survey, electrical rough-in coordination, hardware mounting, CloudEASE configuration, credential database setup, and staff training. After launch, Parking BOXX provides ongoing technical support for all hardware and software components.
All systems are designed for North American power and climate standards — including cold-weather barrier gate operations down to −40°F/−40°C, salt-air coastal environments, and high-UV desert installations.
Frequently Asked Questions
Common questions about parking access control systems, credential types, LPR vs. RFID, costs, and CloudEASE capabilities. Don't see your question? Call us at 1-800-518-1230.
What is a parking access control system?
What types of parking access control systems are available?
How does RFID parking access control work?
What is the difference between LPR and RFID access control?
Can I set up parking access control with no hardware at the vehicle?
What types of facilities use parking access control systems?
How much does a parking access control system cost?
What is the difference between a PARCS system and a basic access control system?
Why Choose Parking BOXX for Access Control
Parking BOXX has been manufacturing parking control equipment for over 85 years — serving commercial, institutional, and municipal customers across North America. Every access control system is designed, manufactured, installed, and supported by Parking BOXX, with no third-party integrators in the critical path.
Call us to discuss your project or get a free itemized quote:
1-800-518-123085+ Years Manufacturing Experience
Not a software startup — a manufacturer with eight decades of field-hardened parking equipment across North America.
North America-Wide Coverage
Sales, installation, and support across the United States and Canada — including Quebec-specific configurations for bilingual facilities.
Full-Spectrum Credential Support
RFID proximity, long-range UHF, HID Mobile, LPR, barcode/QR, and app-only — all managed from a single CloudEASE platform.
CloudEASE — One Platform for Everything
Permit management, real-time event logging, PMS integration, occupancy reporting, and remote gate control — all in one cloud dashboard.
End-to-End Accountability
Parking BOXX designs, manufactures, installs, and supports every component — no gaps between hardware vendor and software vendor warranty.
