Exit Lane Parking System — Collect Every Dollar, Release Every Vehicle

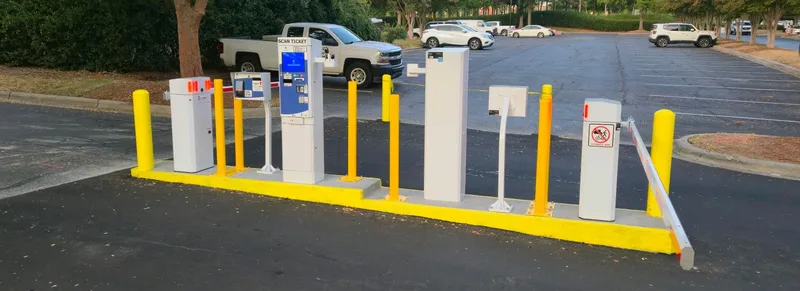

A parking exit lane system is the complete set of exit equipment that collects payment, validates credentials, and controls vehicle release at a gated parking facility — the exit terminal, barrier gate, LPR camera, access control pedestal, and intercom all working together, connected to CloudEASE parking management software.
Every component in the exit lane.
Parking BOXX configures the exit lane system to match your facility — a small surface lot might need just an exit terminal and barrier gate, while a multi-level hospital garage might use all components across multiple exit lanes. Not every lane needs every component.
The exit lane manages four types of vehicle departure through one lane.
Parking BOXX designs exit lane parking systems that handle transient ticket payment, pay-on-foot validation, monthly credential exit, and LPR-based layered departure from a single integrated lane. Every component communicates in real time through CloudEASE.
Transient Ticket Payment at Exit

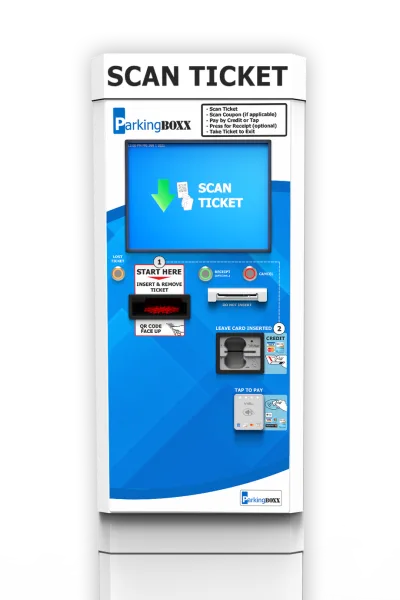

The most common exit scenario. The driver approaches the exit lane, inserts or scans their barcode ticket at the Exit BOXX. CloudEASE calculates the fee based on entry time, current time, and the applicable rate schedule. The driver pays by credit card or contactless tap.
Once payment is confirmed, the Exit BOXX prints a receipt, logs the closed session in CloudEASE, and opens the barrier gate. The entire transaction typically takes under 30 seconds.
Pay-on-Foot Validation

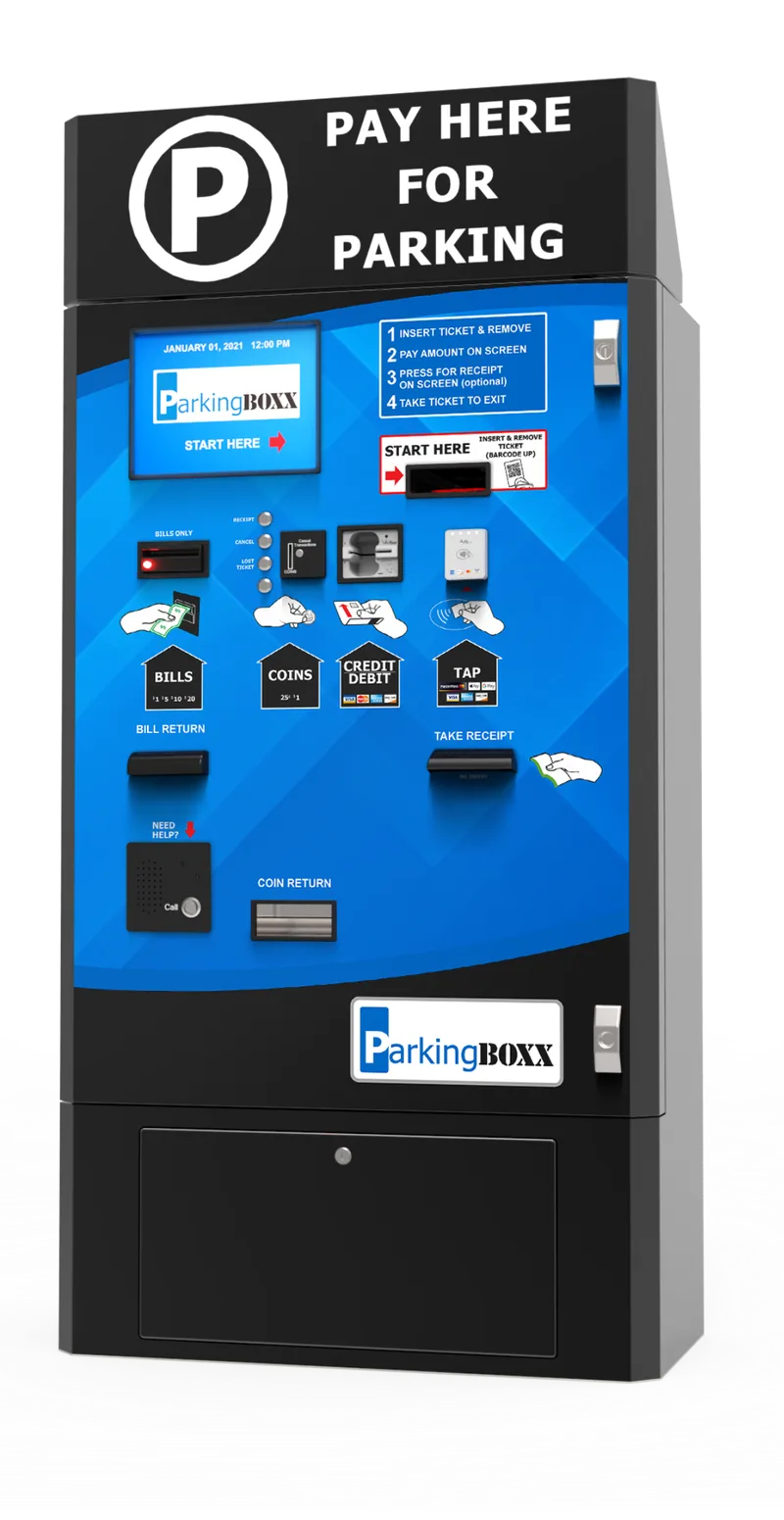

For facilities using walk-up pay stations (Mini Pay BOXX or Big Pay BOXX), the driver pays before returning to their vehicle. The pay station prints a validated ticket or sends a confirmation to CloudEASE tied to the barcode.
At the exit lane, the driver scans or inserts the validated ticket. The Exit BOXX confirms payment in CloudEASE and opens the gate — no additional payment is collected. This mode dramatically reduces exit queue times.
Monthly Credential Exit
Monthly parkers, employees, residents, and hotel guests with registered credentials exit without paying. They present their RFID card, HID Mobile credential on their smartphone, or long-range vehicle tag at the exit pedestal or Exit BOXX reader.
CloudEASE validates the credential against the correct date, time, and facility permissions, logs the exit event, and opens the barrier gate. The entire process is hands-free for recognized long-range credentials.
LPR Layered Exit
When an LPR camera is installed at the exit lane, LPR serves as the primary exit layer — capturing the vehicle's license plate as it approaches. CloudEASE checks the plate against registered monthly parkers and pre-paid transient sessions.
Recognized plates — monthly parkers or transients who paid at a pay station — trigger automatic gate opening with no terminal interaction required. Unrecognized plates are prompted to pay at the Exit BOXX terminal. Every vehicle gets a path out — no abandoned exits, no stuck lanes.
A complete exit lane parking system from Parking BOXX includes:
Barcode ticket scanner reads entry tickets at exit, triggers CloudEASE rate calculation, and collects payment. Accepts all major credit cards, EMV chip, and contactless tap (Apple Pay / Google Pay). Optional bill acceptor for cash. Built-in PCI-compliant card reader, receipt printer, intercom, and RFID/HID access control reader. Custom branding with your logo and colors.
Standard, articulating, and high-speed arms available. Vehicle detection loops prevent the gate from closing on a vehicle in the lane. Fast-cycle operators open and close in under two seconds for high-volume exit lanes.
Serves as the primary exit layer — captures license plates at exit, opens the gate for registered (monthly) or paid plates, directs unrecognized plates to the Exit BOXX terminal. Also available: security cameras and NVR for full lot coverage.
A standalone pedestal for monthly parkers who exit without interacting with the Exit BOXX. RFID card reader, HID Mobile Access, and AVI long-range tag support. Credentials managed in CloudEASE with date, time, and facility restrictions.
Built into the Exit BOXX or mounted as a standalone unit. Connects drivers to remote support staff for lost tickets, payment disputes, or accessibility assistance — without requiring on-site personnel.
For facilities that accept cash payment in the exit lane. Bill acceptor, coin/token, and full credit card stack. Provides change. Same CloudEASE integration — transactions reconcile with exit events automatically.

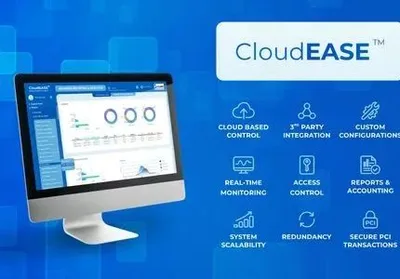

Every exit event, every payment transaction, every credential validation is recorded in real time. Operators manage rates, run revenue reports, audit sessions, and monitor lane status from any web browser — no server required.
Exit lane systems are configured differently depending on facility type and parker mix.
Transient-Heavy Facilities
Public garages, event venues, retail parking. The majority of exits involve ticket scan and payment. Fast throughput is the priority — high-speed barrier gate arms and a streamlined Exit BOXX UI minimize queue buildup.
- Exit BOXX + barrier gate
- EMV + contactless for fast payment
- LPR optional for pre-paid exits
Pay-on-Foot Facilities
Facilities with walk-up pay stations (Mini Pay BOXX or Big Pay BOXX) process payment before the driver returns to their vehicle. Exit lanes validate paid tickets only — no payment collected at the gate, maximum exit speed.
- Exit BOXX in validation-only mode
- LPR for pay-by-plate confirmation
- Intercom for exception handling
Monthly-Heavy Facilities
Office buildings, residential, employee lots. The majority of exits are credential-based. Exit lanes can be configured as credential-only (no terminal needed) or dual-mode to handle both monthly and occasional transient exits.
- Access control pedestal primary
- LPR for registered plate bypass
- Exit BOXX for transient overflow
Multi-Lane Facilities
Large garages may run dedicated exit-payment lanes alongside credential-only monthly lanes. CloudEASE monitors all lanes simultaneously and alerts staff to hardware issues or queue anomalies in real time.
- Dedicated monthly-only exit lanes
- Dedicated transient payment lanes
- Centralized CloudEASE dashboard
Every exit event. Every dollar. One dashboard.
Every payment, every credential exit, every exception is recorded in real time. Operators manage rates, run revenue reports, audit sessions, and monitor lane status from any web browser — no server required, no on-site staff needed at many customer sites.
The exit lane closes the loop. Here's the rest of the system.
Entry Lane System
Ticket machine, barrier gate, LPR camera, and access control. The entry lane issues the ticket that the exit lane collects payment on.
View entry lane →Mini Pay BOXX & Big Pay BOXX
Walk-up pay stations where drivers pay before returning to their vehicle. The exit lane validates the paid ticket and opens the gate with no queuing.
View pay stations →Access Control BOXX
Gated access for employees, tenants, and staff — no payment. RFID, AVI, and dual-height readers for mixed-height facilities.
View access control →Exit lane systems, asked & answered.
Still have a question? One 15-minute call covers sizing, components, LPR options, integration, and pricing.
Ask yours1. What Is an Exit Lane Parking System?
2. What Components Are in an Exit Lane Parking System?
3. How Does the Exit Lane System Handle Pay-on-Foot Parkers?
4. Can the Exit Lane System Support LPR Layered Exit?
5. How Does the Exit BOXX Handle Monthly Parkers?
6. What Payment Methods Does the Exit BOXX Accept?
7. What Is the Difference Between an Exit Terminal and a Pay Station?
8. How Much Does an Exit Lane Parking System Cost?
Scope your exit lane system.
Tell us about your site — facility type, lane count, and parker mix. We'll size the right system and send a proposal, usually within one business day. No pitch, no pressure.
